Description
Oval shape, larger glued area, more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINO’s in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.
- Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm
- Patented routing principle unique to hand-held machines for accurate work with no kickbacks
- Stops that are quick and easy to adjust, for accurate results
- Ergonomic shape for ease of operation in any position
- Rotation-proof joint with DOMINO dowels providing maximum stability
- System accessories compatible with both DOMINO jointer
Features
Product highlights
-
Achieve ideal results more quickly:
Positioned in next to no time with the innovative stop cap system. The routing height and depth can be adjusted in seconds using the preselection slider.
-
Convenient and safe:
Unique patented pendulum routing principle enables smooth, accurate work as well as holes without any scorch marks.
-
Systems get it done:
DOMINO, cutter, dowel up to 10 x 50 mm, flexible adjustment options and compatible system accessories for virtually unlimited jointing possibilities.
Product Details
- A system that joins everything up
The DOMINO DF 500 is particularly easy to handle and offers almost unlimited jointing possibilities. No matter whether it is panel or cabinet construction, for lightweight frame or rack joints – the DF 500 impresses with maximum precision, flexibility and simple handling.
- Pendulum cutting principle
Unique among manual machines and patented by Festool: The DOMINO DF 500 jointer routing motion. The simultaneous rotating and pendulum movement of the router allows smooth working and holes without scorch marks. Thanks to the pendulum motion, the routers do not overheat, leading to an extremely long tool life.
Custom-fit alignment: The first DOMINO is positioned in a precision cut elongated hole, the next DOMINOs are inserted into wider elongated holes with play so that the joint can be aligned effortlessly. The result is a stable joint, protected against rotation from the first DOMINO.

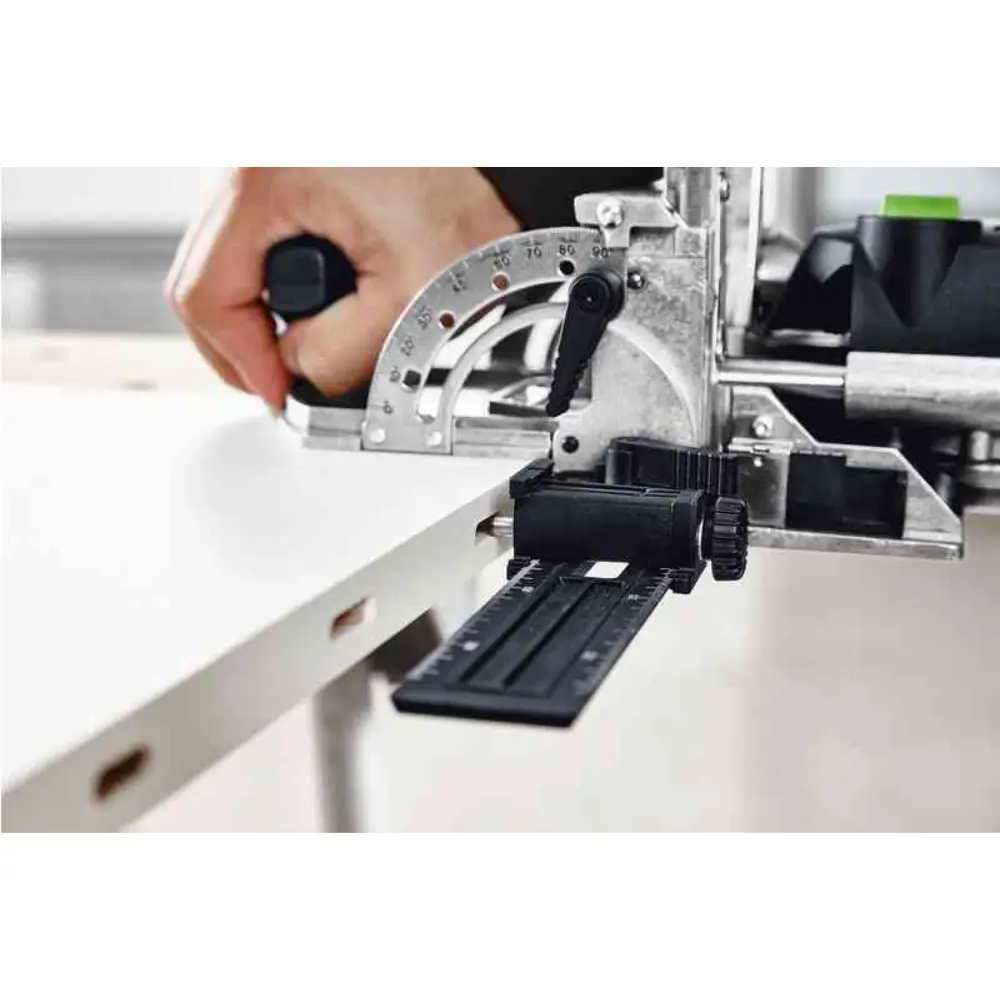

One of the main time-based advantages of working with the DOMINO DF 500 jointers arises from working without complicated measuring or marking – with the DOMINO DF 500, the fast and precise positioning is quite simple thanks to the stop catches.
- Save time when using the same cutting depth over and over again
For great flexibility and precision: You select your required routing depth using the detent lever lock. The options are 12 mm, 15 mm, 20 mm, 25 mm and 28 mm.
The special shape of the DOMINO in combination with expanding glue pockets and lateral longitudinal grooves gives the dowels a secure grip. You can use the Festool DOMINO DF 500 joining machine to process DOMINOs up to 10 x 50 mm in size. Also available as individually adjustable rods.

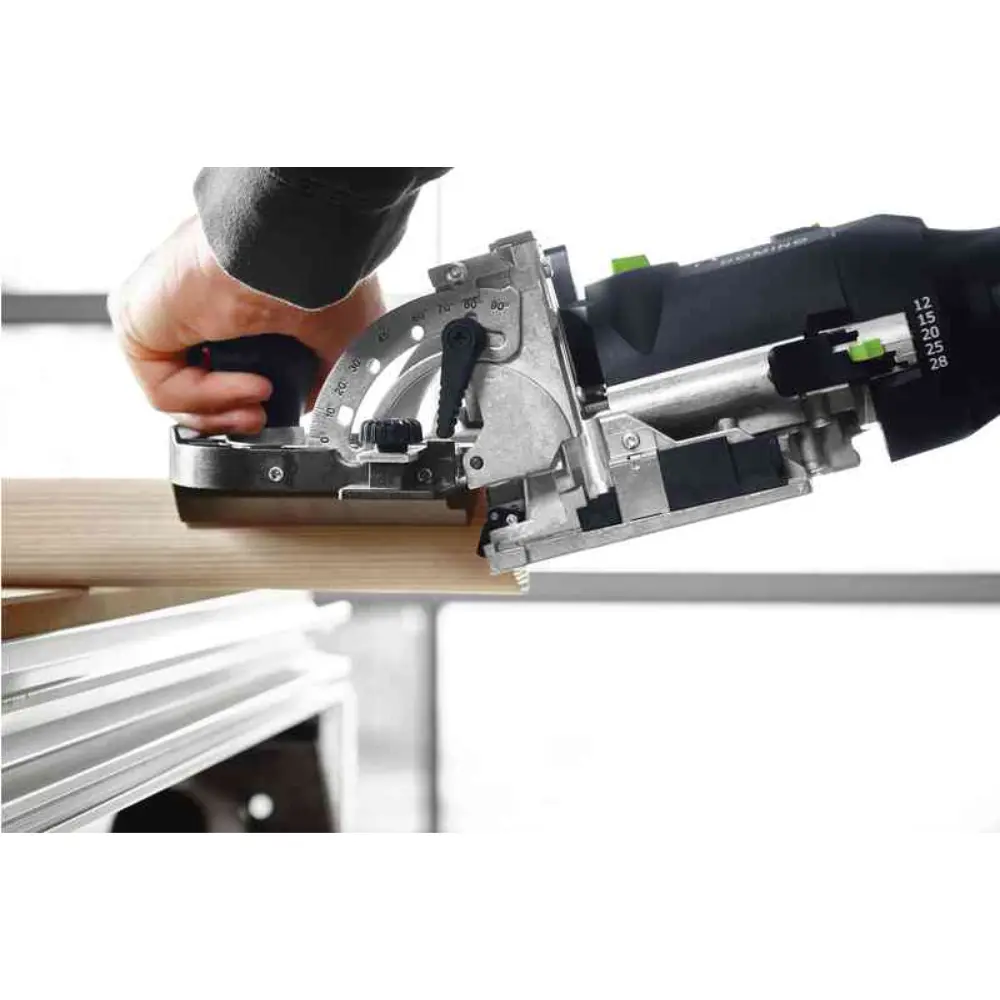

Precision mitre routing using pre-settings or infinitely variable routing angle adjustment.
Even thin work-pieces from 12 mm can be easily connected – ideal for the sides of drawers.
DOMINO’s are available in two materials: Beech for interior applications and weatherproof, insect- and mould-resistant sipo DOMINO’s for outdoor applications.
Right from ,the first DOMINO the joints are completely secured against rotation – without aligning the work-pieces.
All DOMINO’s originate from sustainable forest management. The beech dowels are certified by the Pan European Forest Council (PEFC).
Larger quantities of chips are created when working with the DOMINO DF 500 jointers. To improve chip removal out of the routed hole during routing, as well as to protect your health, we recommend always working with a dust extraction system.
Usage – Main Applications
- Furniture manufacture
- Shop fitting/Interior fitting
- Window construction
- Exhibition stand construction
- For panel joins
- For frame and rack joints
Specifications
Technical data:
Power consumption ; 420 W
Idle engine speed ; 25 500 min⁻¹
Depth stop for routing depth ; 12, 15, 20, 25, 28 mm
Max. routing depth ; 28.00 mm
DOMINO slot cutter dia. ; 4, 5, 6, 8, 10 mm
Routing height adjustment ; 5 – 30 mm
Dust extraction connection diameter ; 27 mm
Product weight without accessories : 3.50 kg
Transport weight incl. accessories ; 5.80 kg
Items Included
- DOMINO cutter D5
- Additional Stop
- Open ended spanner : WAF8
- Plug It Power Cable 4m
- Systainer : SYS3 M 187
- operation tool
- in SYSTAINER SYS 2 T-LOC
