Description

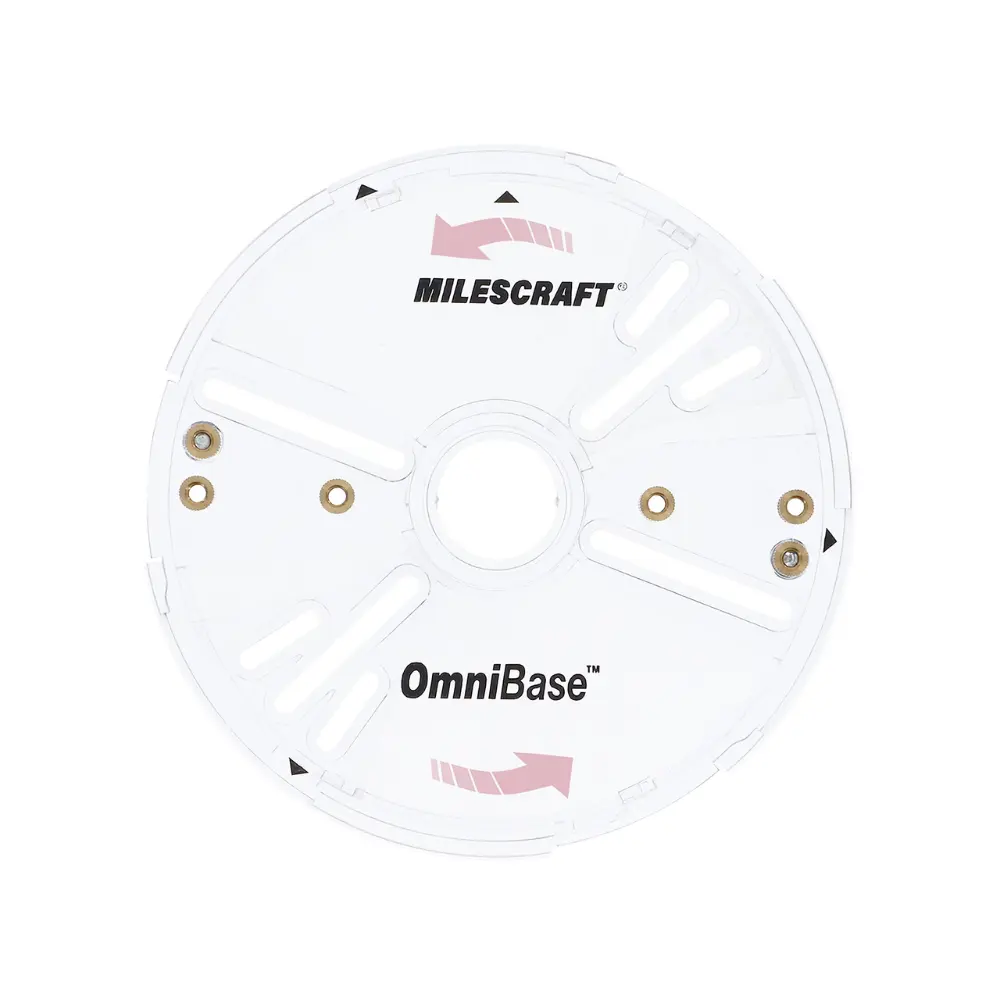

The OmniBase™, by Milescraft, is the next generation in universal router bases. The 7” router base is compatible with nearly ever router, from small trim routers to full-size. This is possible due to its patented adjustable swivel mounting wings. Secure one or both fixed mounting locations to your router, then swivel the others to align. The OmniBase™ also is compatible with all of the other TurnLock™ jigs from Milescraft, making it a must have accessory to connect your existing router to all of the other jigs from Milescraft.
Key Features

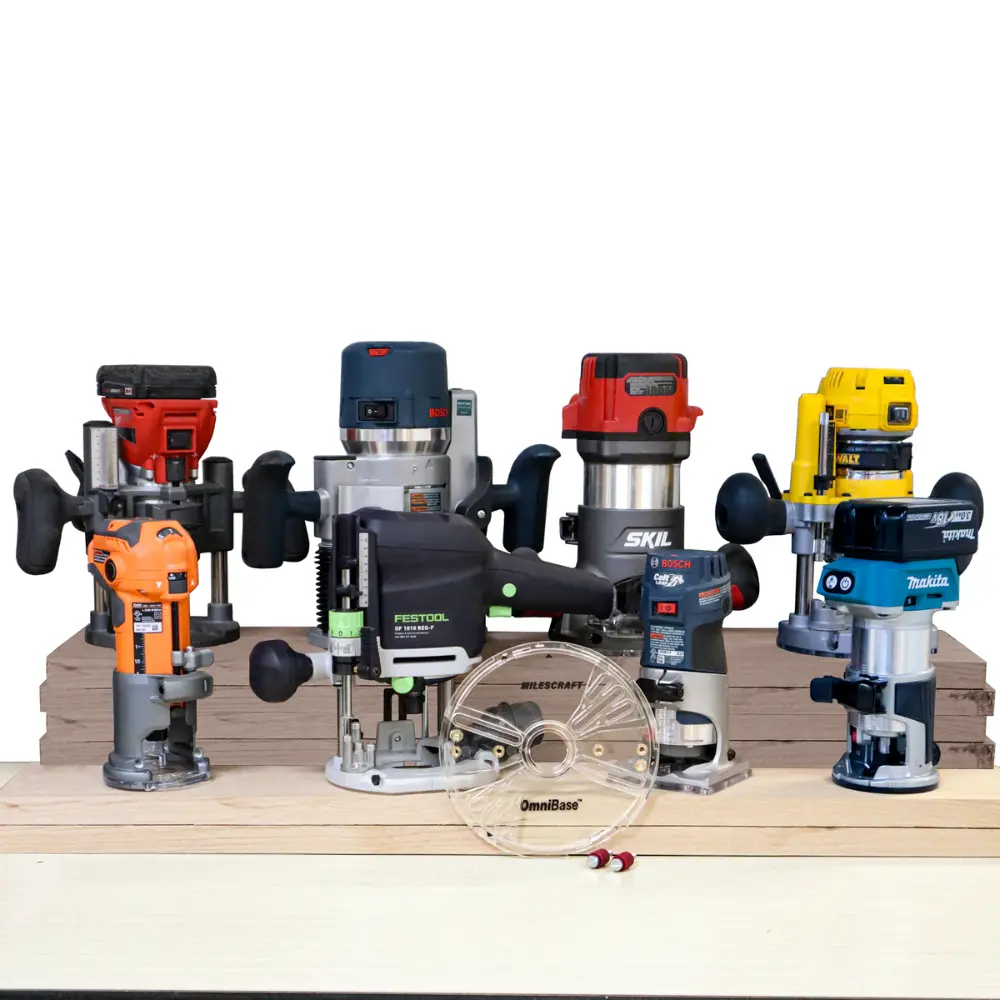

Truly Universal Fit
Router base plate is compatible with nearly every trim, palm, mid or full-size router

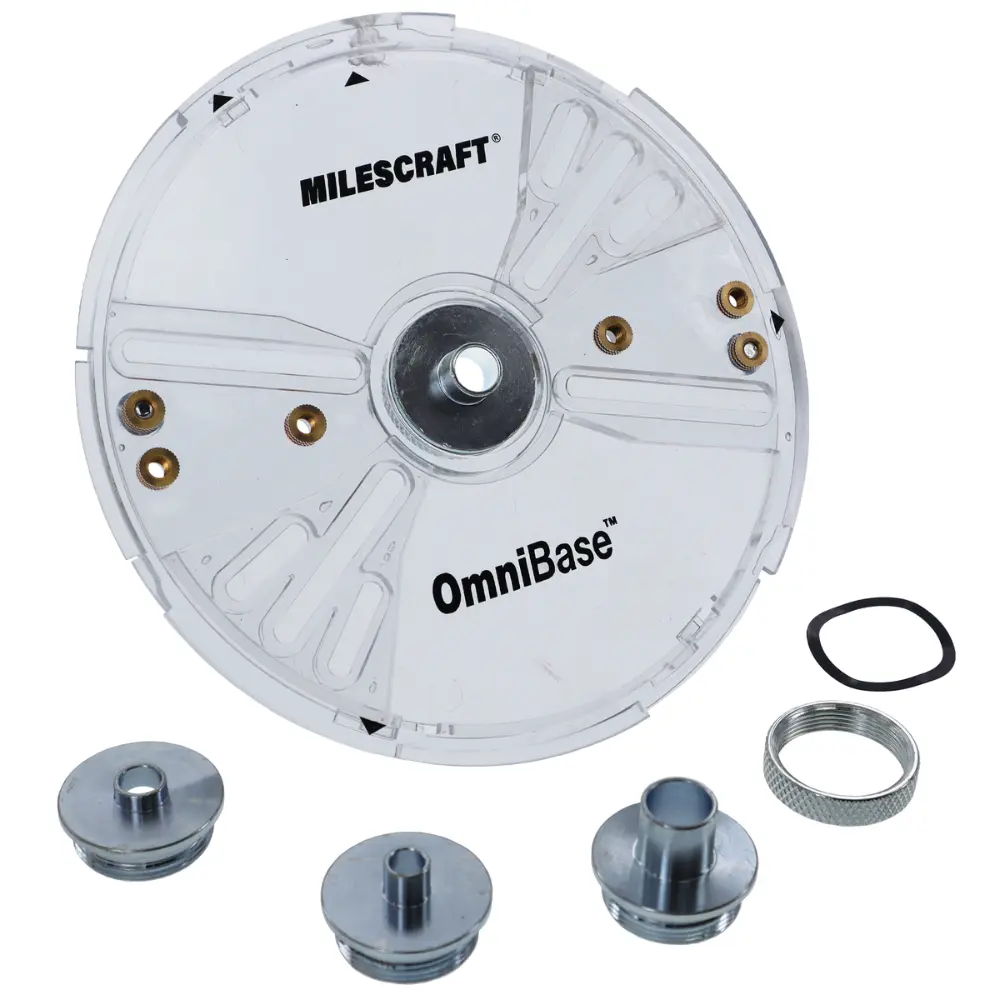

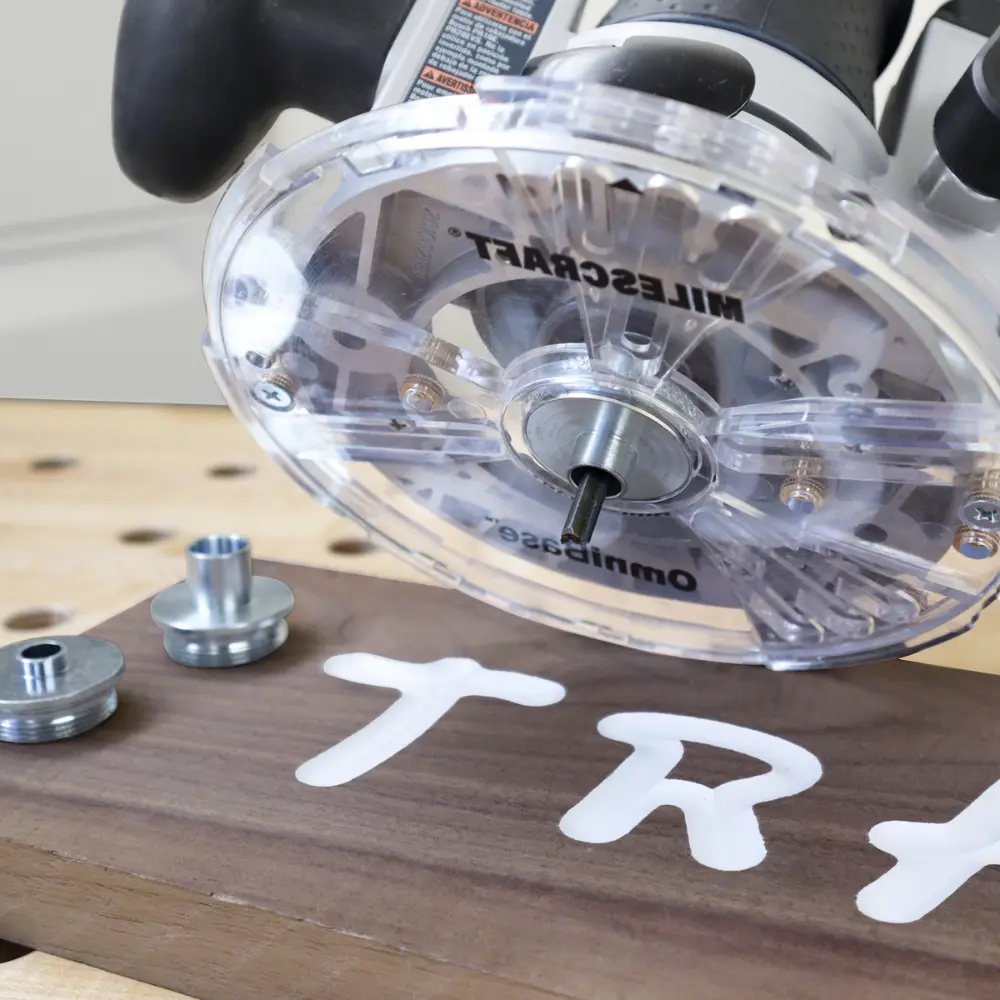

Accepts Metal Bushings
Compatible with 1-3/16” Porter Cable® style metal bushings
Adjustable Mounting Wings
Two fixed wings and two adjustable, swivel mounting wings align to any router hole pattern

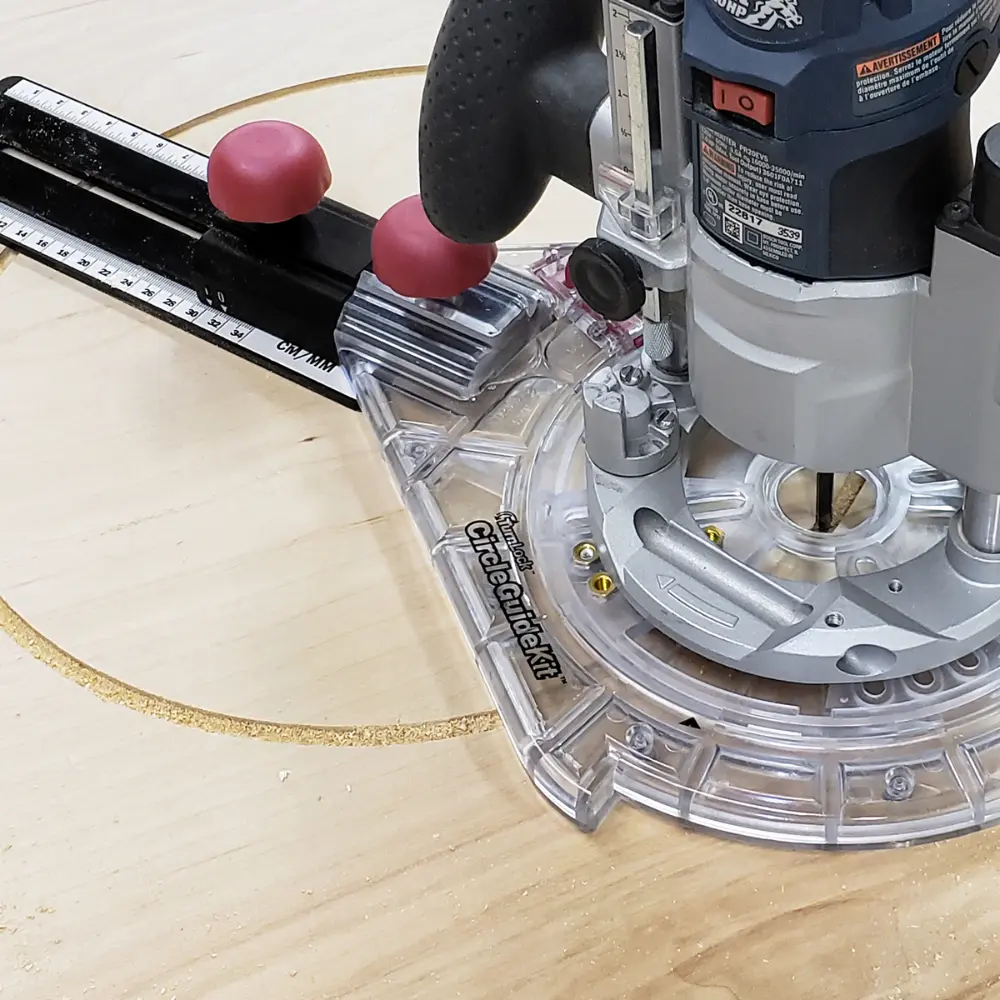

TurnLock™ Compatible
OmniBase™ is compatible with past, present, and future Milescraft® TurnLock™ jigs

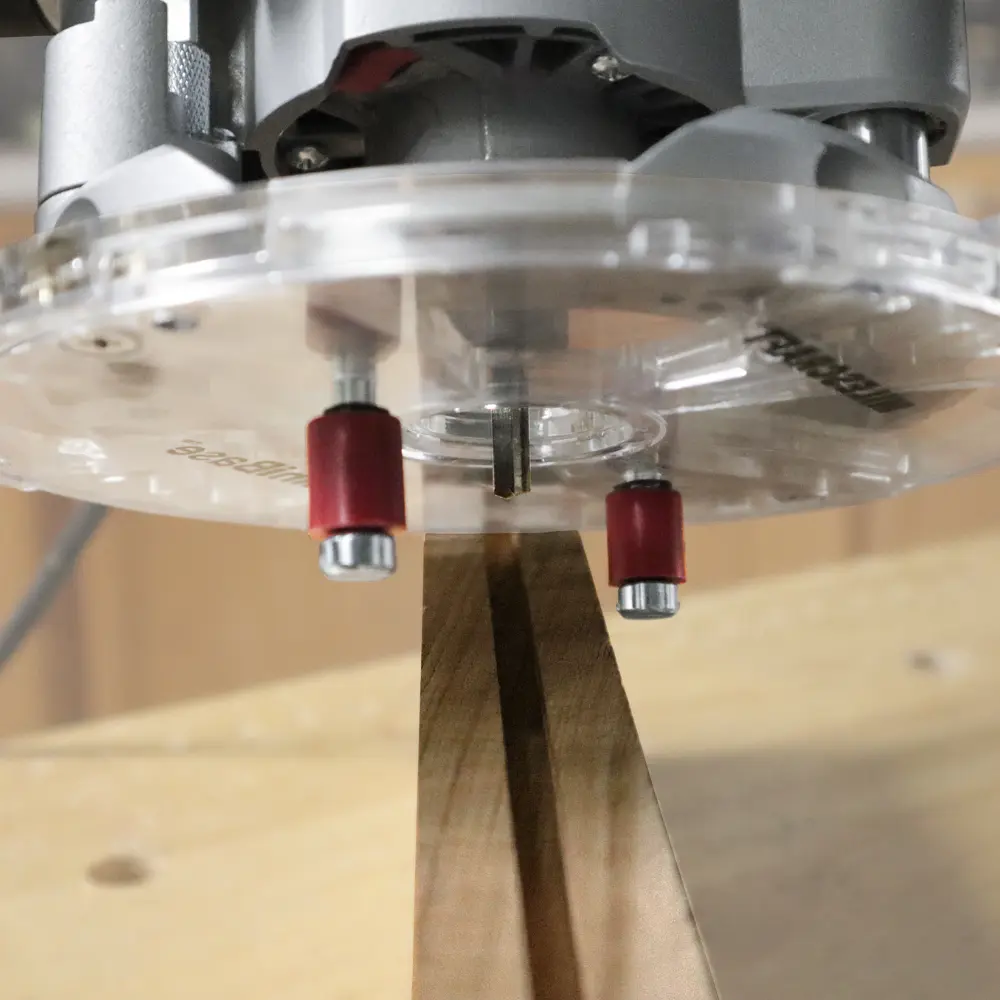

Mortise Guides
Includes two non-marring mortising pins for cutting mortises into varying board thicknesses for tenon joinery
Reversible Centering Pin
Centering pin fits in both ¼” and ½” router collets (6, 8, 12mm for 6252 Metric)
Increased Stability
7” Diameter base plate increases stability during routing projects
Clear Design
Helps increase visibility while routing
Specifications
Base Plate Diameter:
7”
Material:
Clear Polycarbonate
Mortise Pins:
Two Settings for thinner or thicker boards
Centering Pin:
¼” or ½” Imperial Collets (6202)
6, 8, 12mm Metric Collets (6252)
Base Plate Compatibility:
Trim, Palm, Mid & Full-Size Routers
TurnLock™ Compatibility:
Past, Present, and Future Milescraft Jigs

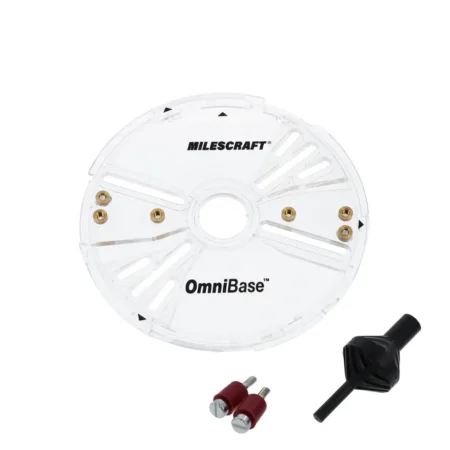

Includes:
Clear Base Plate with 2x Adjustable Mounting Wings, Centering Pin, 2x Mortise Pins, 4x Mounting Washers, Instruction Manual
Download Manual
