Description

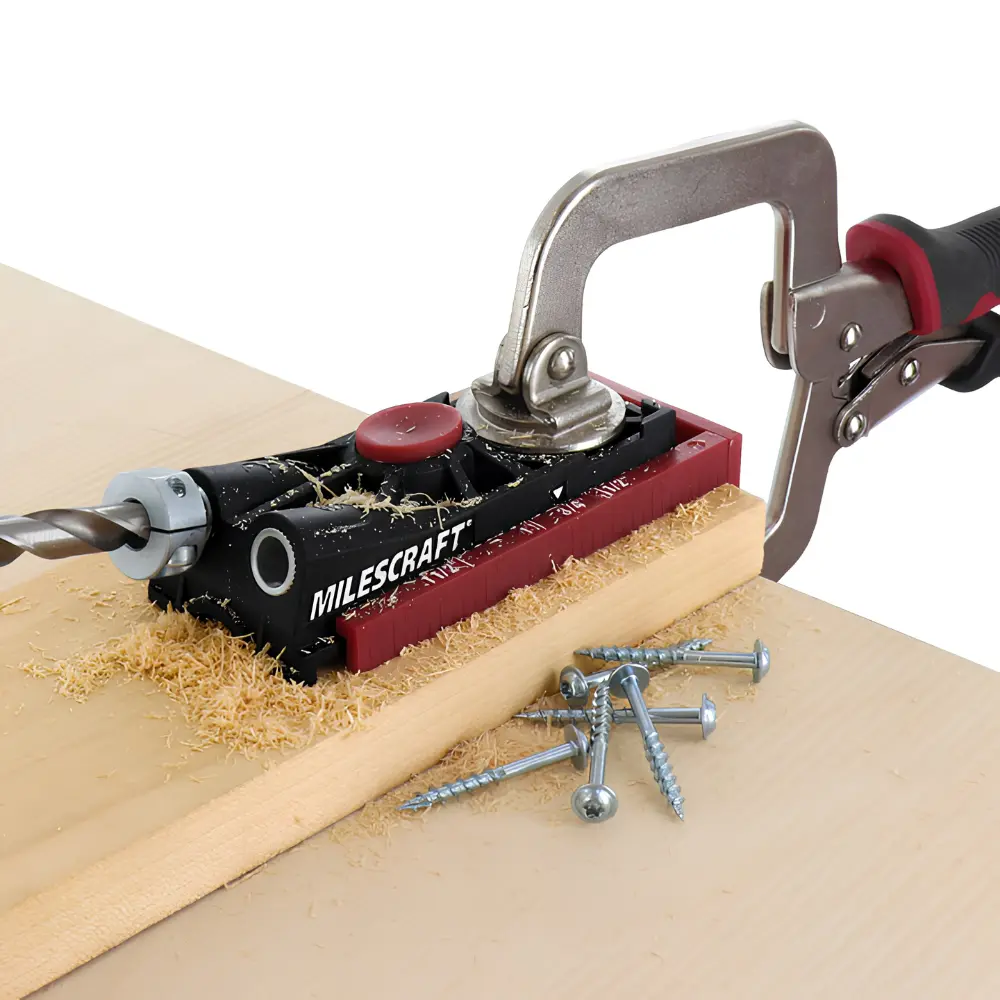

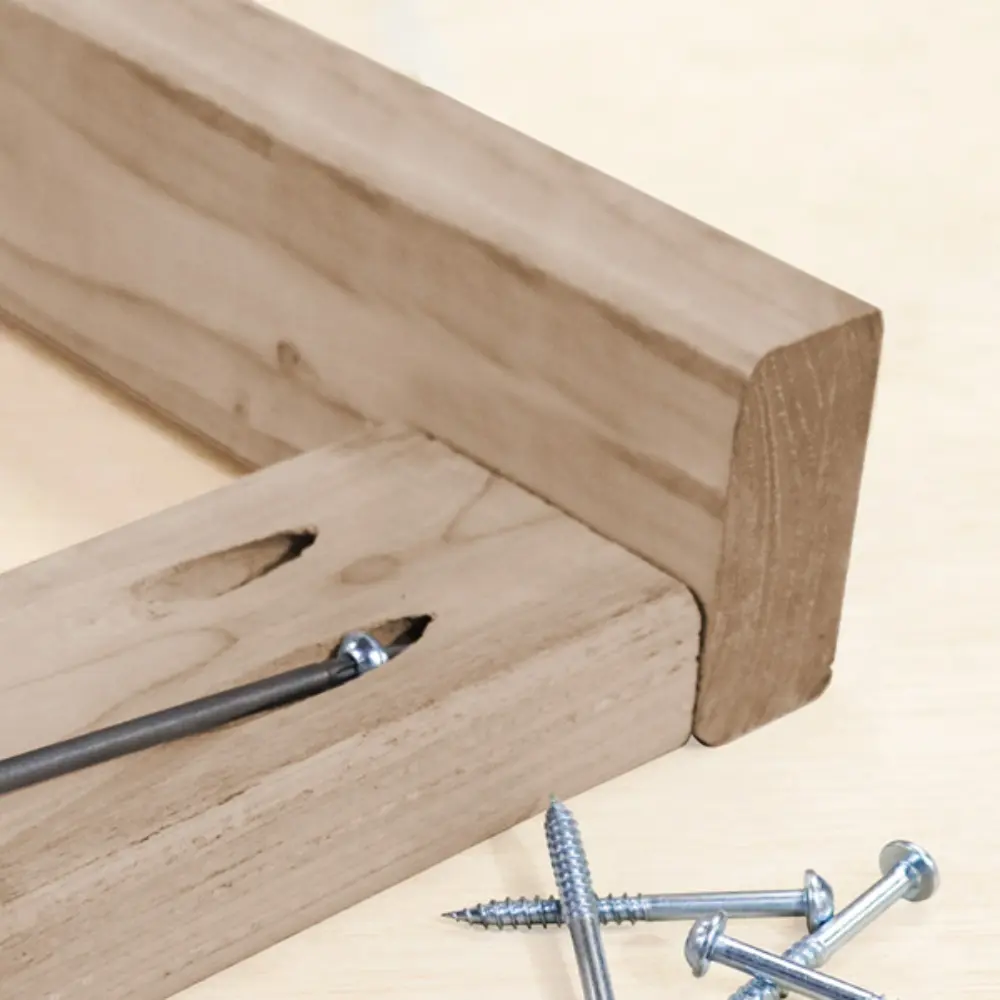

The Milescraft® PocketJig200ST™ allows you to connect your workpieces quickly with strong and accurate pocket hole joints. Create corner joints, edge joints, T-joints, framing joints, miter joints, and make repairs. With built-in settings for different board thicknesses, just set this pocket jig to your desired setting, set the depth of your bit, and start drilling. This complete kit in a sturdy carrying case comes with all of the bits, drivers, screws and accessories needed to complete any pocket hole project.
Key Features
PocketJig200ST™ Pocket Hole Jig Kit – Designed To Make Repairs Simple
Spring-loaded sled adjust button allows the jig to be set to do repairs of any nature around your home or your shop
Built-In Imperial And Metric Scales
The built-in scales allow you to easily measure the thickness of your workpiece

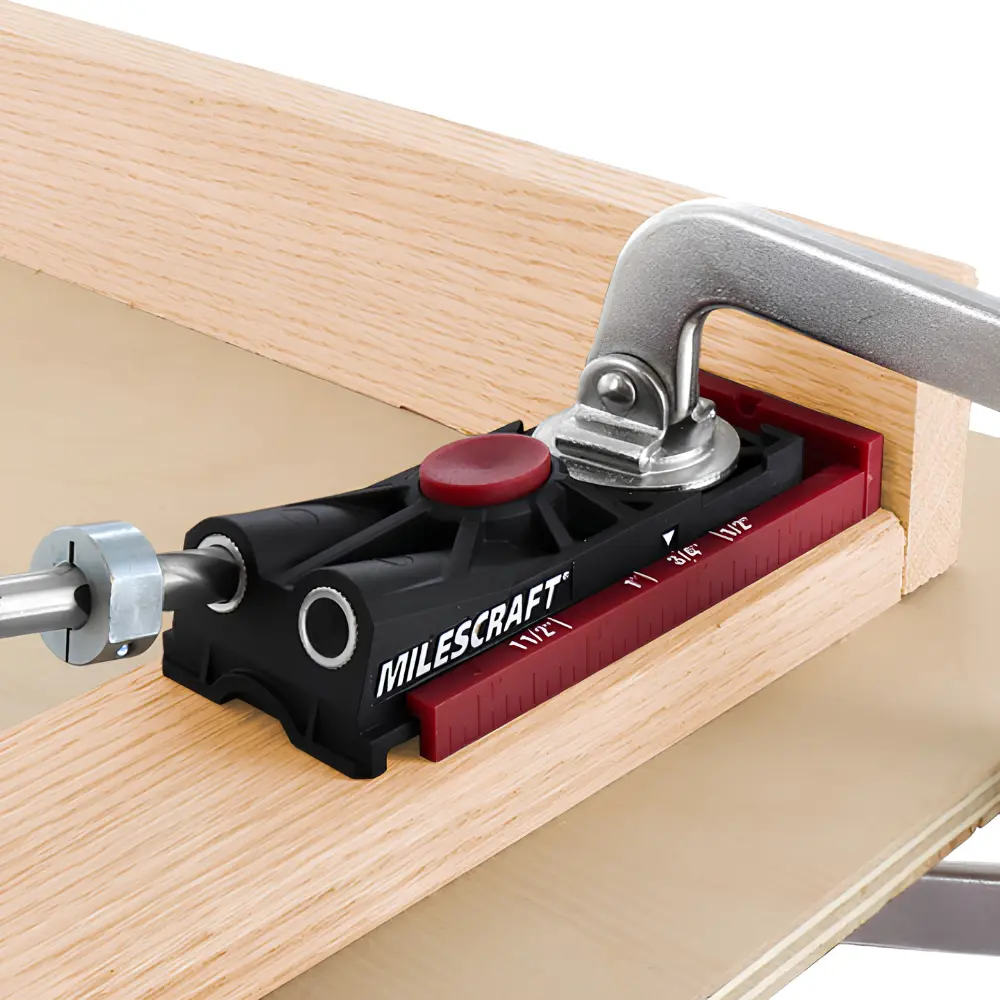

Board Thickness Settings
There are four common board thickness settings built into the pocket jig: 1/2″, 3/4″, 1″ and 1-1/2″ (12, 19, 27, 38mm)
Easy readout arrow to help define your board thickness setting
Easily adjust to your board thickness setting with the single sled design and sled adjust button
Hardened Steel Drill Bushings
For precise and accurate pocket holes every time using the Milescraft PocketBit™
Tight tolerances between the bushing and the drill bit, reduce tear-out and create a clean pocket hole on the first try
Recessed Clamp Pocket with Magnet
Helps to keep the clamp in the same position as you move to different locations
With the stronger rare earth magnet, you can easily clamp the jig from one location to another
For speed and accuracy, use the Milescraft FaceClamps™
Convenient Built-In Depth Setting
Easily set your bit for the correct drilling depth
3/8″ HSS Step Drill Bit
Made from high-speed steel the PocketBit is designed to reduce clogging and provide smooth and precise holes
3/8″ Stop Collar
Precise drilling depth
Includes hex key for tightening
6″ Magnetic T20 Torx® Driver
For maximum torque settings without stripping
To allow pocket screws to align with maximum precision
Storage Case
Small design for compact strorage
Specifications
Material:
Reinforced Nylon
Drill Guide Bushing Spacing:
1″
Clamping Method:
Works with any clamp
For use with:
Wood Materials for 1/2″ to 1.5 thick (12-38mm)
Drilling Angle:
15°
Screw and Driver Style:
T20 Torx
Screws:
10 of each: 1” (25mm), 1.25” (32mm) coarse and fine, 1.5” (38mm), 2” (51mm), 2.5” (64mm)
Drivers:
6″ T20 Magnetic Head Driver
Pocket Plugs:
10 plugs
Drill Bit:
3/8″ (9.5mm) HSS Pocket Bit
Includes:
Double Barrel Pocket Hole Jig, 6″ T-Star Driver Bits, 3/8″ PocketBit™, 60 Piece T20 Pocket Hole Screws, Pocket Plugs, 3/8″ Stop Collar with Hex Key and Instruction Manual
Download Manual
