Oneida Dust Deputy 2.5 Deluxe 17 Gal. Cyclone Separator Kit

SKU: 015AXD250017

R7,699.00 incl.

The Dust Deputy® 2.5 Cyclone Separator is Oneida Air Systems’ latest innovation for woodworkers and other makers in need of an effective and affordable dust control solution.

Pay in 3 or 12. The Clever Way to Pay.
From over 12 months or 3 interest free payments.
Learn more...

Your flexible payment provider.

Example payment for

x 3
0% interest, zero fees.
Pay in 3
x 12
28.25% interest, plus fees.
Total Payment
Pay in 12

How does PayJustNow work?

  • Shop and choose PayJustNow at checkout.
  • Sign up and get instant approval.
  • Pay in 3 or 12.

You can complete sign-up in under 2 minutes - no need to leave your cart!

IN STOCK

Description

High Airflow Separation & Large Waste Capacity

A dust-free tool is an efficient tool, but not every shop can fit (or afford) a full-sized dust control system. That’s why shop vacuums have always been the first choice that craftsmen and DIYers use for dust collection. And bigger tools mean bigger messes – and bigger vacuums to clean them!

The Dust Deputy® 2.5 Cyclone Separator is Oneida Air Systems’ latest innovation for woodworkers and other makers in need of an effective and affordable dust control solution. Optimized for the more powerful wet/dry vacuums that have become standard over the years, this larger cyclone delivers up to double the airflow of smaller cyclones and lid-style separators!

Like all of our patented Dust Deputy cyclones, the 2.5 uses centrifugal force to separate and remove up to 99.9% of dust and debris from the airstream before it reaches your vacuum’s filter – eliminating clogged filters and suction loss! The Dust Deputy will save you significant time and money on expensive replacement filters and dust bags, and keeps your wet/dry vac operating at peak performance! This simple and efficient design can be adapted for use with any make, size, or model vacuum and features female inlet and outlet ports that fit the cuffed 2.5″ hoses of larger shop vacuums.

Features

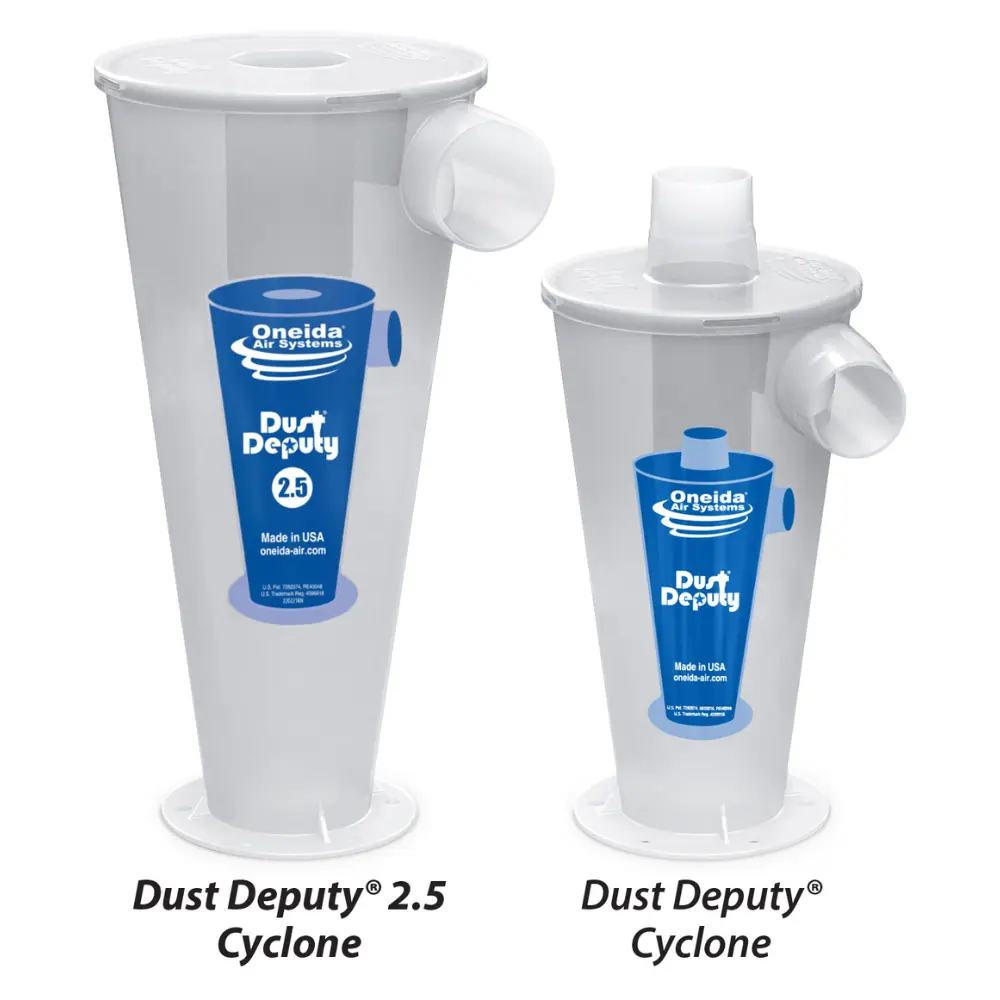

High Airflow Design

The larger cyclone better accommodates more powerful wet/dry vacuums, delivering up to twice the airflow and significantly reducing pressure drop compared to other cyclone and lid-style separators.

Neutral-Vane Inlet

Directs the inbound airstream down into the cyclone and prevents swirling dust-laden air from creating turbulence at the inlet; Improving overall separation performance by over 20% compared to cyclones without this feature.

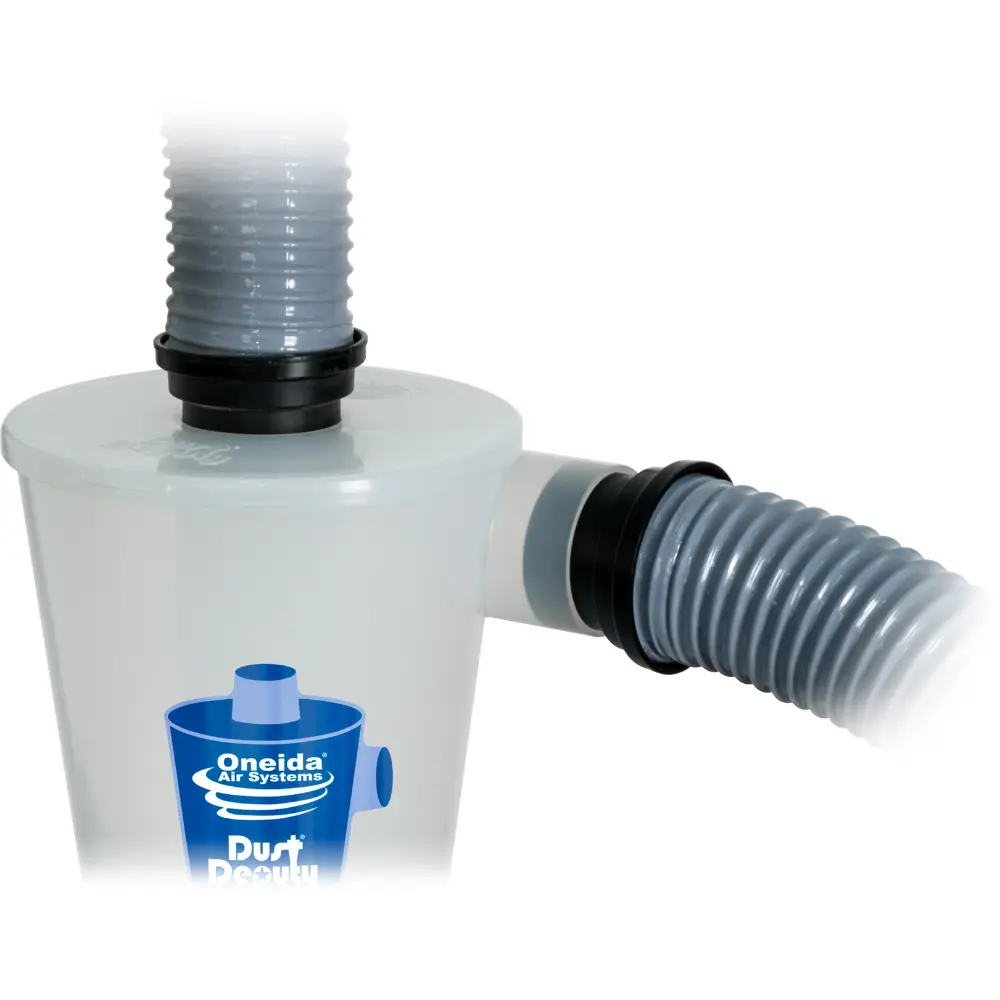

Plug & Play Hose Connections

Female inlet and outlet ports (2.25″ I.D.) readily accept the 2.5″ cuffed hose fittings standard with shop vacuums commonly used for dust collection.

Anti-Static Materials

Manufactured from special materials that help safely convey the build-up of static electricity (common in any high friction environment such as dust collection) to prevent harmful discharges and annoying static cling.

Proudly Made in the USA

Designed, tested, and manufactured right here in the United States of America: Made by Craftsmen, for Craftsmen™. We fully stand by the quality of every one of our products and our friendly team of dust collection experts are here for you.

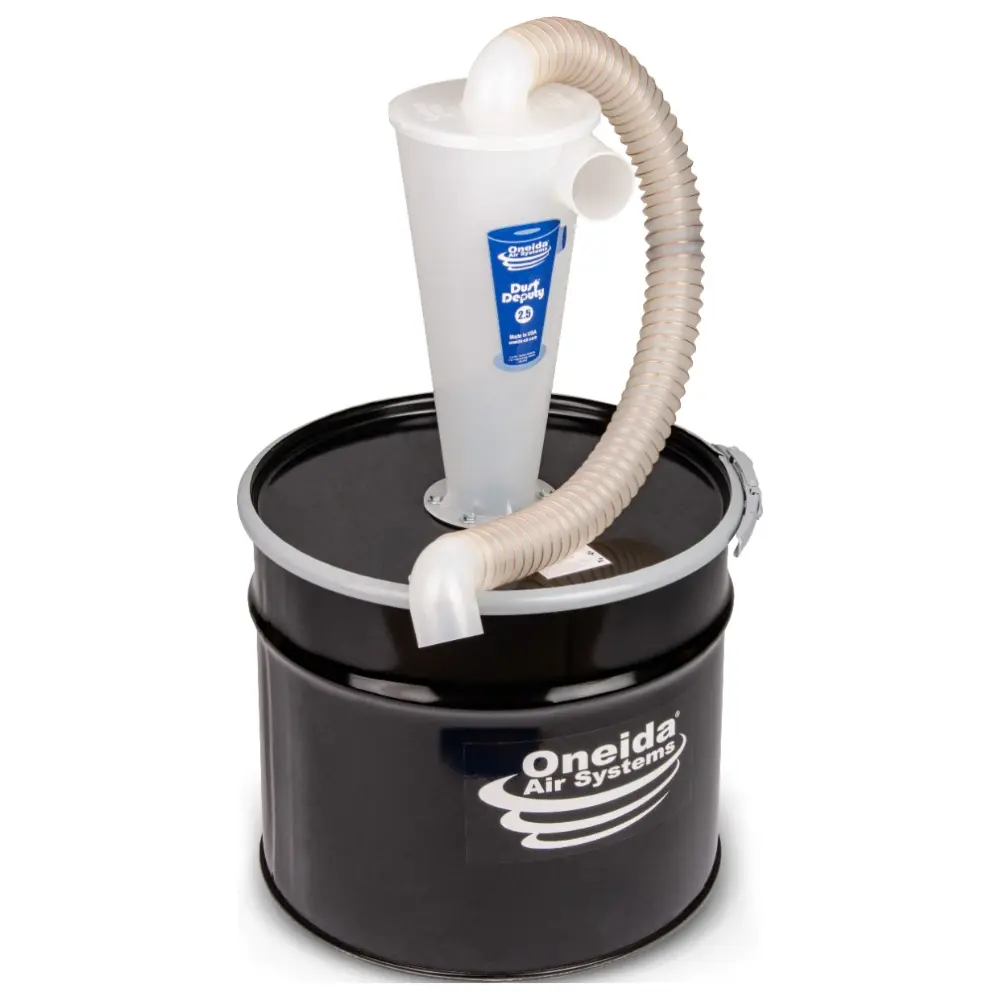

What's Included

  • Anti-Static Dust Deputy 2.5 Cyclone Pre-Separator
  • Steel 17-gallon Dust Bin w/ Locking Lever Clamp
  • 2″ × 3′ Wire-Reinforced Vacuum Connection Hose
  • 2x Tapered Hose Elbow Adapters
  • Pre-cut Neoprene Foam Gasket and Hardware
  • Shop vacuum shown in product images is NOT included

Specifications

More Information
SKU AXD250017
Cyclonic Separation Efficiency Removes over 99% of fine wood dusts
Waste Capacity 17 Gallons
Inlet Size Nominal: 2.25″ I.D. / 2.5″ O.D.
Actual: Tapered 2.31″ to 2.29″ I.D.
Outlet Size Nominal: 2.25″ I.D.
Actual: Tapered 2.31″ to 2.29″ I.D.
Discharge Size 3″ I.D.
Primary Build Materials Steel, Polypropylene
Thickness 22 Gauge (Drum Body)
Static Resistance Rating Anti-Static
Color Clear
Width 20-1/2″
Depth 20-1/2″
Height 31-1/8″
Height to Center of Inlet 29-3/8″
Actual Weight 24
Product Compatibility Wet/Dry Vacuums with 2.5″ hoses and inlets
Contents Cyclone Separator, Pre-Cut Drum Lid, Lid Clamp, Hose, 2x Hose Elbows, Conductive Tape, Gasket, Hardware
Manufacturer Oneida Air Systems
Manufacturer Statement Made in USA
Warranty Information 1 Year Limited Warranty

Manual Download

Owner’s Manual Download

Oneida Dust Deputy 2.5 Deluxe 17 Gal. Cyclone Separator Kit
