Description

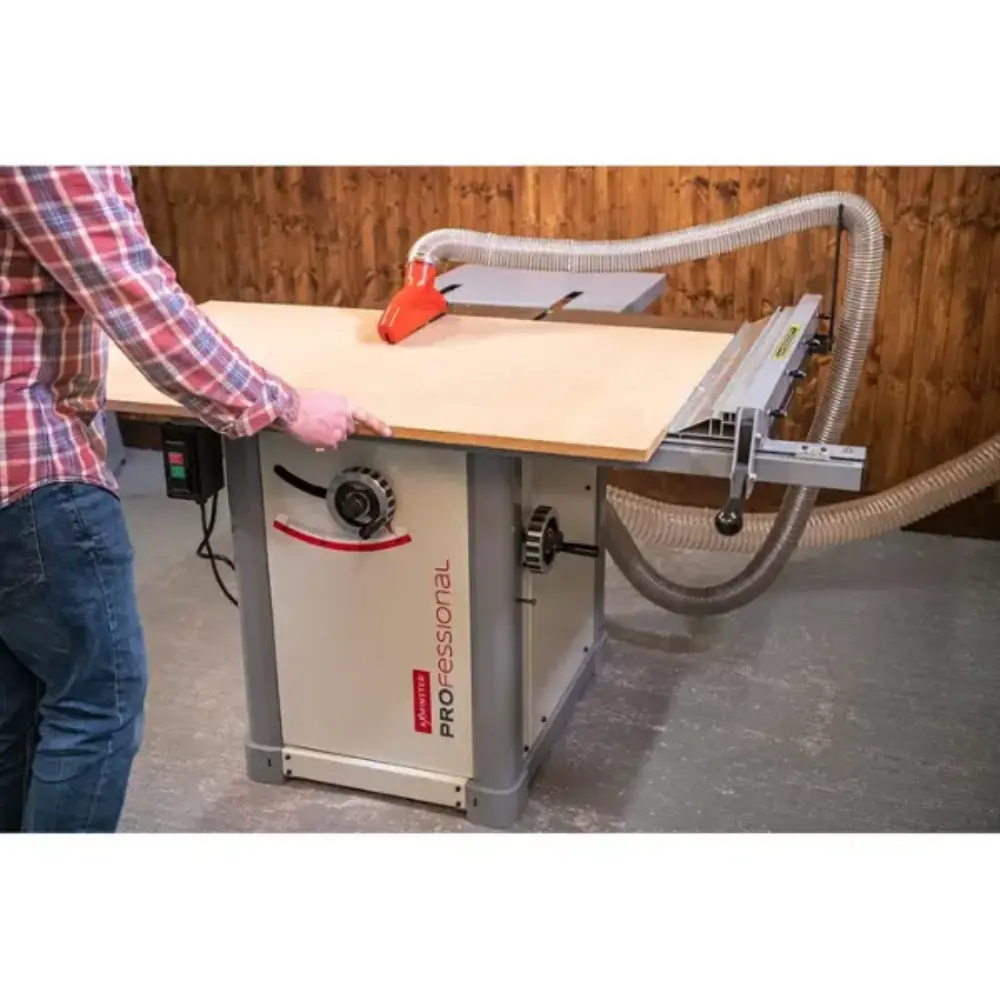

The Axminster Professional AP254SB Saw Bench is built for daily use in a busy workshop. It has been carefully designed to include many useful features. It offers an impressive 80mm depth of cut and with its cast iron, right hand extension table allowing a generous 695mm width of cut to the fence. The motor, castings and trunnions are all mounted on the saw’s chassis. This is a much better and stronger option as it doesn’t place any stress on the underside of the table.
The AP254SB’s chassis is heavy gauge steel, supporting the smooth cast iron table. A quality mitre fence runs in T-slot grooves provided on both sides of the blade. The full length fence is a rigid T-style which locks at the front, adjustment is smooth and easy. The rip fence comes with a Hi/Lo aluminium auxiliary fence.
The 2.5kW 1ph quiet and powerful induction motor gives you all the oomph required. Blade adjustment for height and tilt are controlled separately on individual handwheels.

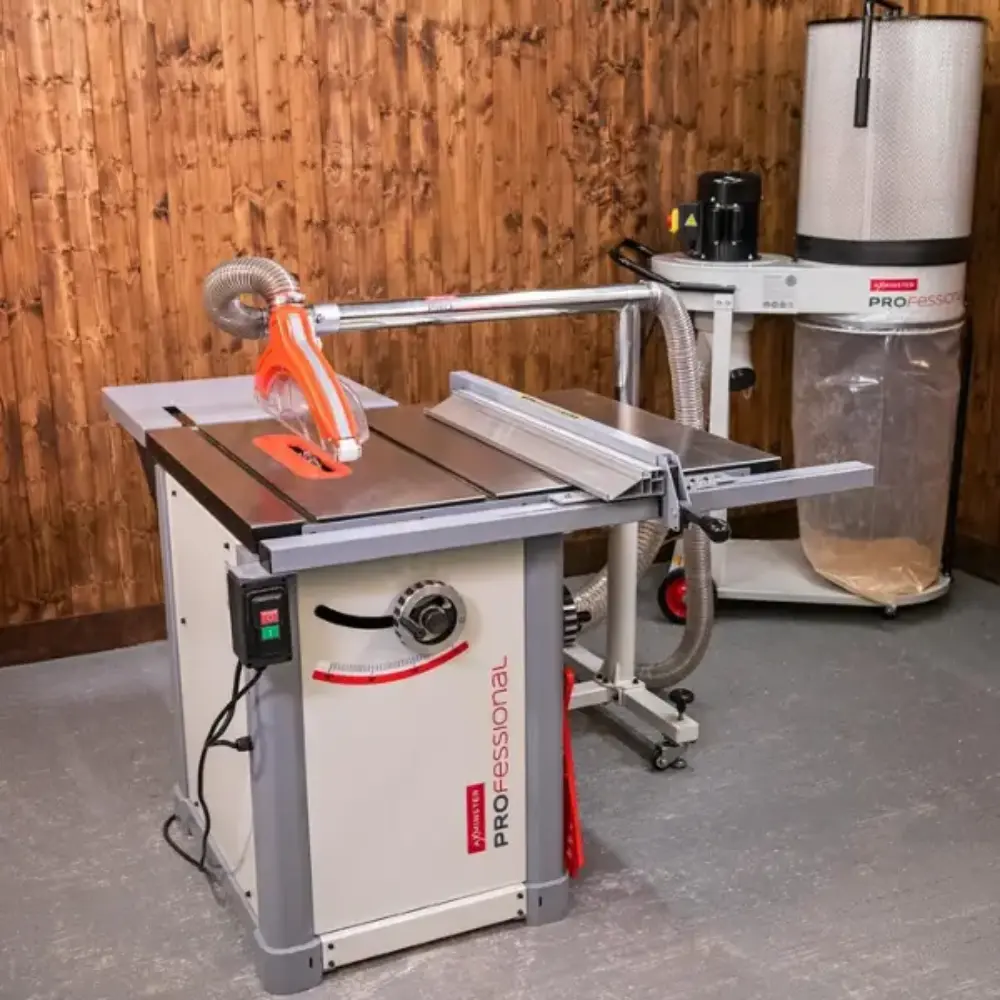

A steel rear take-off is also supplied. Two point dust extraction is via a 63mm connection on the blade guard hose combined with a 100mm outlet at the rear of the machine. Connection to a suitable extractor is recommended.
Supplied with an Axcaliber TCT general purpose blade, R/H side and rear extension tables. The R/H extension is 800mm long x 440mm wide offering a max cutting width of 695mm.
Optional accessories include Dado Blade Set for grooving.
N.B. This Machine requires a 16amp supply and it’s recommended that a C Type breaker is used, if you are unsure please contact a qualified electrician.
Covered by the Axminster 3 year Guarantee, you can rest assured knowing your saw will serve you well for many years to come!
Features
The large fine ground cast iron tables provide smooth running, reduced vibration and a long life for your table saw.
-
Independently mounted table & trunnion assembly
The trunnion assembly is mounted independently on the saw’s frame, relieving stress on the table and ensuring that the table remains flat and true over time.
-
Solid “T” style dual height rip fence
Achieve close to the blade work as well as heavy duty ripping with the dual height rip fence, with a solid “T” style design for accuracy.
- Rear & RH extension table included
As well as providing stability, the right hand extension table gives you a maximum cutting width overall of 695mm.
The quiet and powerful induction motor maintains blade speed for a consistent cut.
-
Twin mitre fence table slots

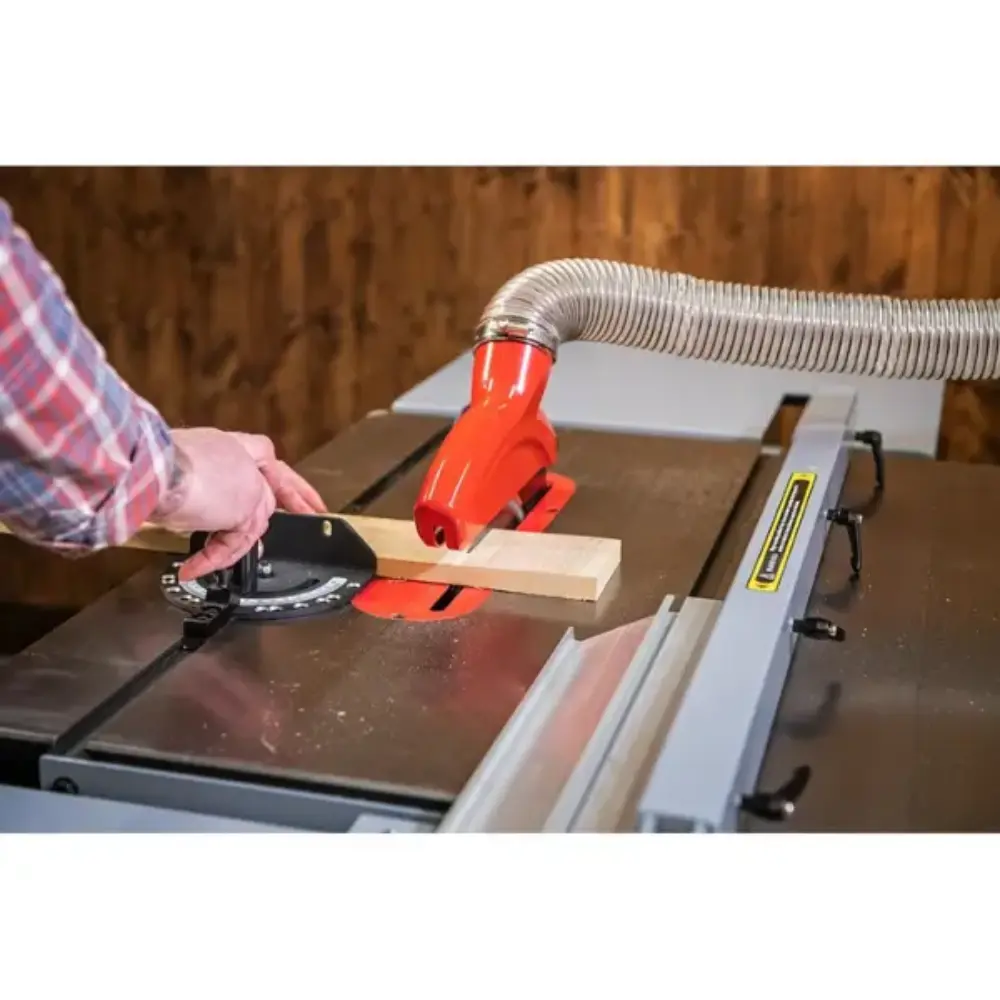

Twin T-slot mitre fence slots on both sides of the blade, ideal for jig use. Also supplied with a premium mitre gauge with useful pre-set angle stops.
-
Compatible with Dado Blade

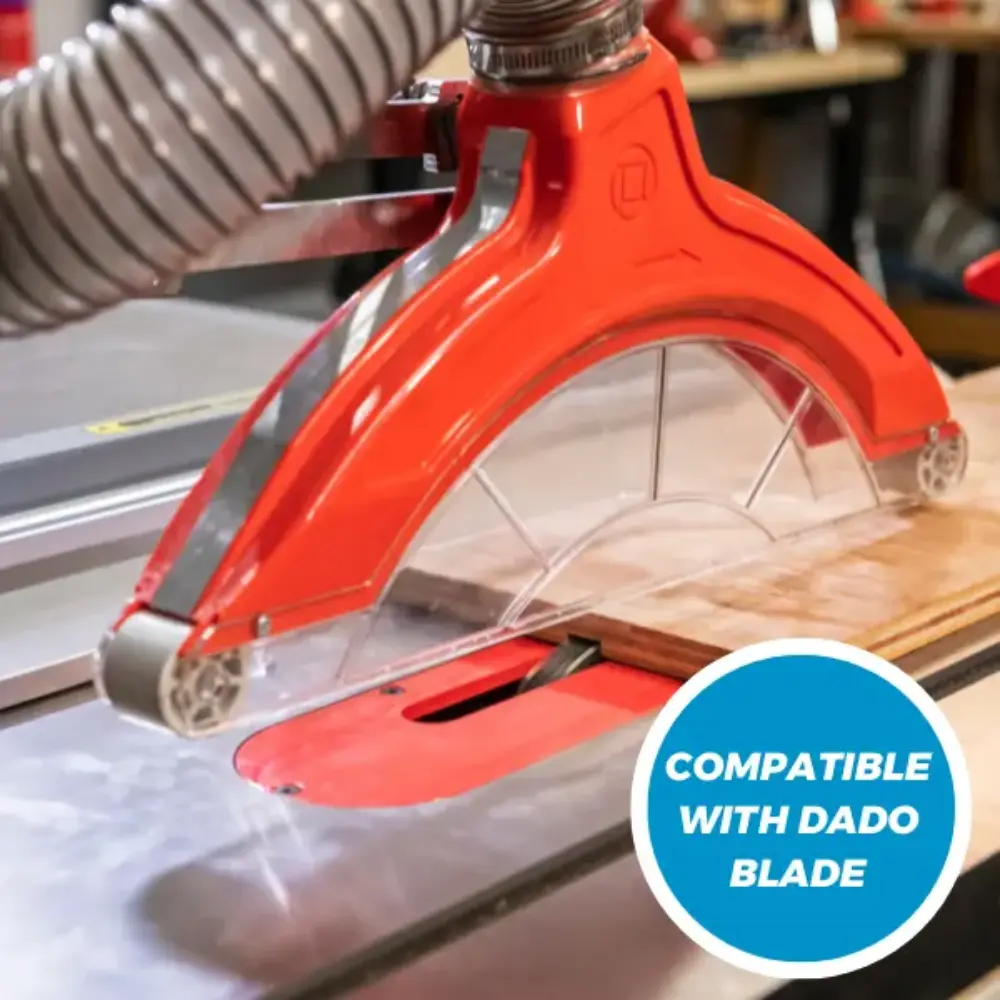

With the available accessories of Dado Blade Table Insert and Overhead Crown Guard, the AP254SB is compatible with a Dado Blade Set which enables the easy cutting of grooves.
-
Dual dust extraction ports

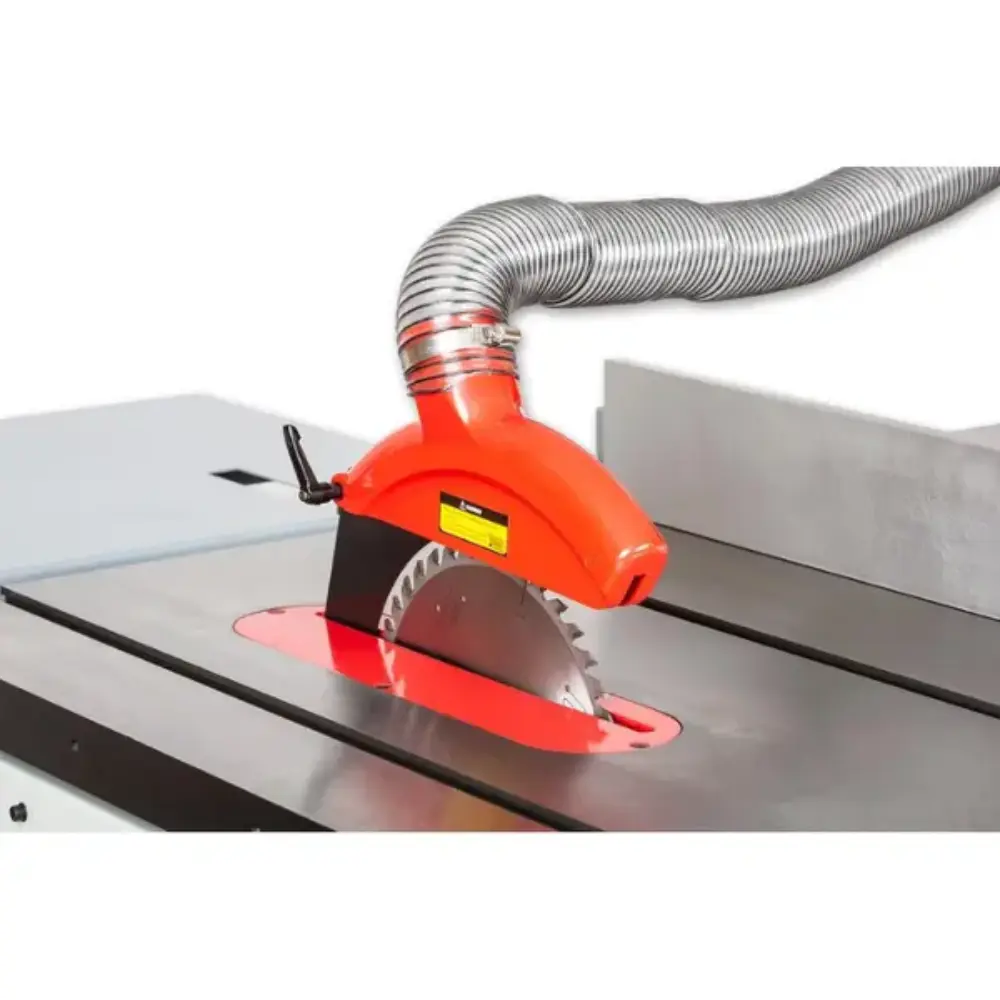

Keep the saw line clear with a 63mm blade guard hose connection to clear above the blade as well as a 100mm rear outlet to clear below.
Metal handwheels provide a smooth operation for blade adjustment.
Axminster Guarantee
Axminster 3 Year Guarantee
Look for the icon
It’s probably the most comprehensive free guarantee ever – put your trust in Axminster and Hardware Centre!
The right machine
Covered by the Axminster 3 year Guarantee, the product is designed and intended to be used by businesses with occasional periods of continuous work. Must be regularly maintained and serviced annually. Guarantee is void when used for industrial use or as part of a production line.
Keep your receipt
You don’t need to register your new machine to benefit – just keep your proof of purchase.
Free parts & labour
So sure are we of the quality, we cover all parts and labour free of charge for three years.
The 3 year guarantee covers parts and labour providing:
- You have purchased the correct product for your intended purpose in accordance with our classification
- The product is operated correctly
- You have maintained and serviced the product in accordance with the instructions (proof may be required)
The Guarantee does NOT cover:
- Products purchased for use outside our classification advice e.g. Workshop product used for business purposes
- Consumable items e.g., original blades, knives, drive belts or abrasives
- Issues identified due to normal wear and tear, misuse and neglect
- The product has been operated with blunt/incorrect tooling
- The product has been modified
