Leigh Box Joint & Beehive Jig B975

• Description
• Specifications
• Reviews (0)

Description

Specifications

Specifications

CAPACITIES

Box Joints

MIN MAX A Pin Board Thickness 1/8″ [3mm] 13/16″ [20.64mm] B Socket Board Thickness 1/8″ [3mm] 13/16″ [20.64mm] C Board Width 1-1/2″ 17-13/16″ [432mm] D Pin Centers 1/2″ comb 3/4″ comb FIXED WIDTH 1″ [26mm] 1-1/2″ [39mm]

JIG SIZE AND WEIGHT

Length: 12.6″ [320mm]
Height: 0.49″ [12.5mm]
Depth: 3.76″ [95.5mm]
Weight: 0.94 lb [430 grams]
Package (Carton) size: 1.7 lbs. (.77 kg) 13-1/2″ x 6-1/2″ x 2-1/2″ (342 x 165 x 64 mm)

STANDARD JOINERY

Box joints in 1/2″ and 3/4″ joint sizes

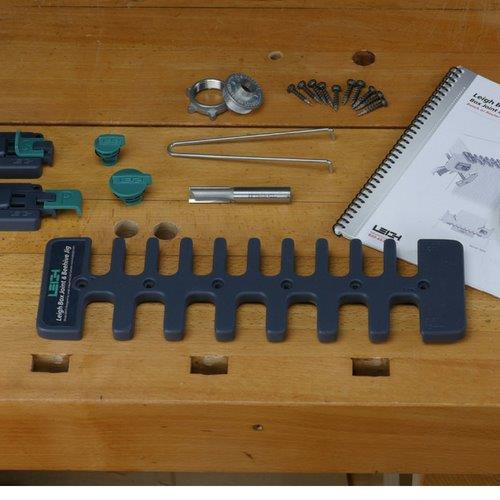

IN THE BOX

Jig Template, glass-reinforced nylon
Side Stops, adjustable for precise pin and socket board positioning
Step-over Cams, 1/2″ and 3/4″, accurate indexing when routing wider boards
Straight Bit 160, ½” x 1-1/4″, 1/2″ shank
Guide Bushing, e10 Elliptical eBush for precise joint fit adjustment
Pin Wrench, for eBush adjustment
10 Screws, No.8 Phillips Pan Head, for beam assembly
User Guide, fully Illustrated
DVD, instructional
