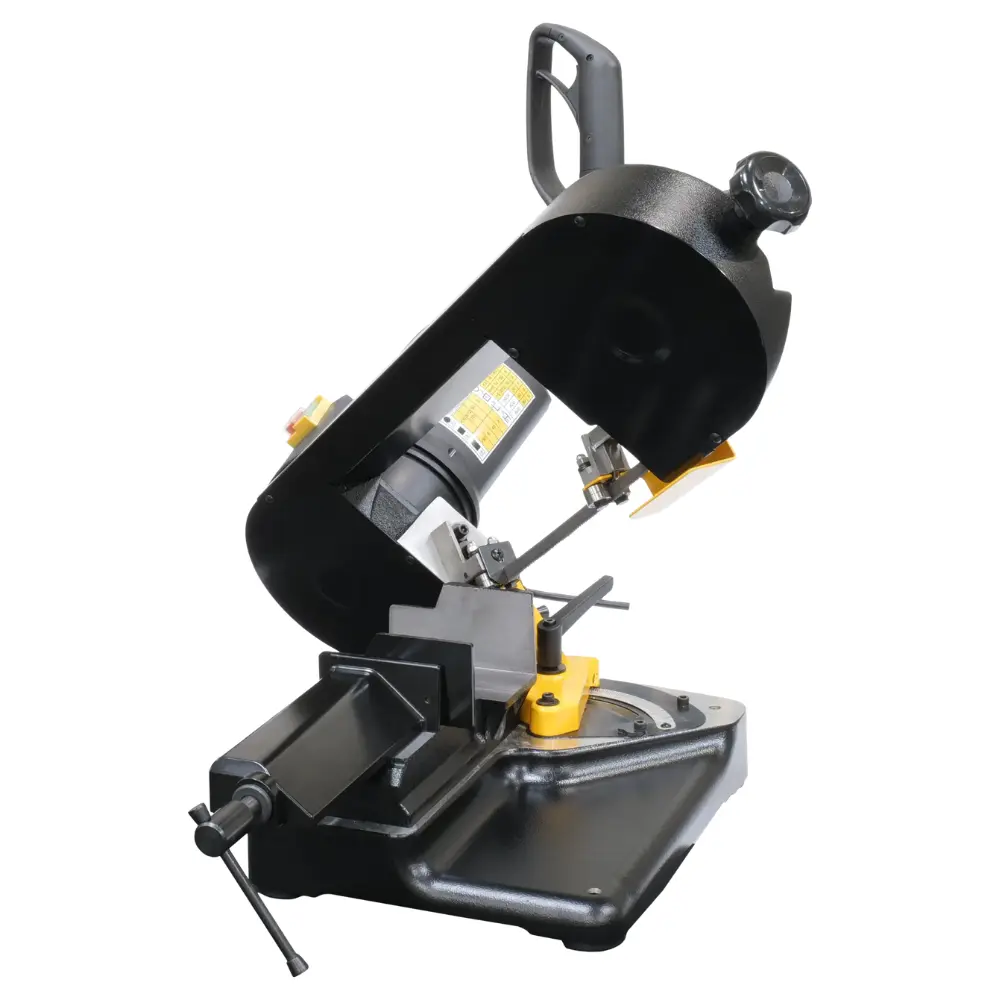

Laguna B:5 5″ Horizontal Metal Cutting Bandsaw

Specifications

Motor & Power

• 1HP motor running on standard 220V power — no special wiring required
• Variable blade speed dial (82–262 FPM) for optimizing cuts across different metals
• Thermal protector and CE-rated electrical system for operator safety

Cutting Performance

• 90° capacity: 4.92″ round bar, 5.12″ × 4.92″ rectangular stock
• 45° capacity: 2.99″ round and rectangular stock
• 60° capacity: 1.97″ round and rectangular stock

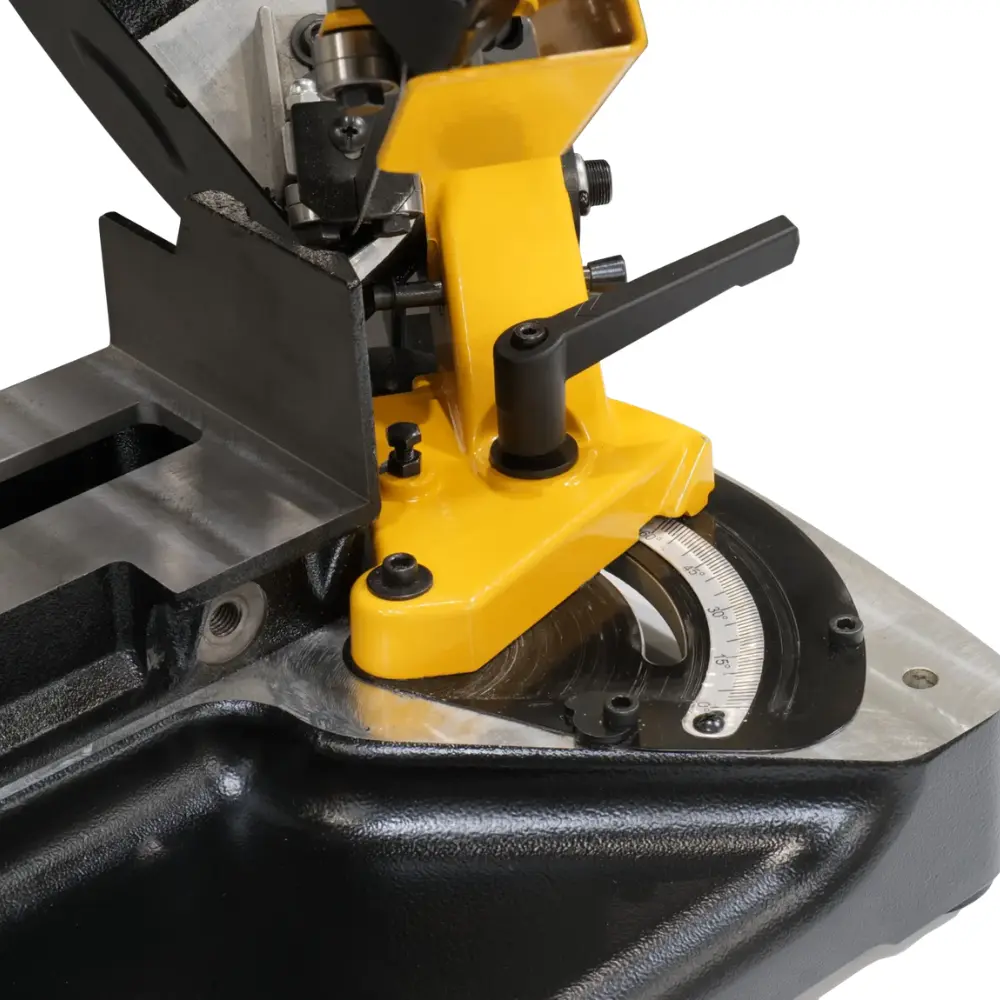

• Cutting angle adjustable from 0° to 60° via locking handle

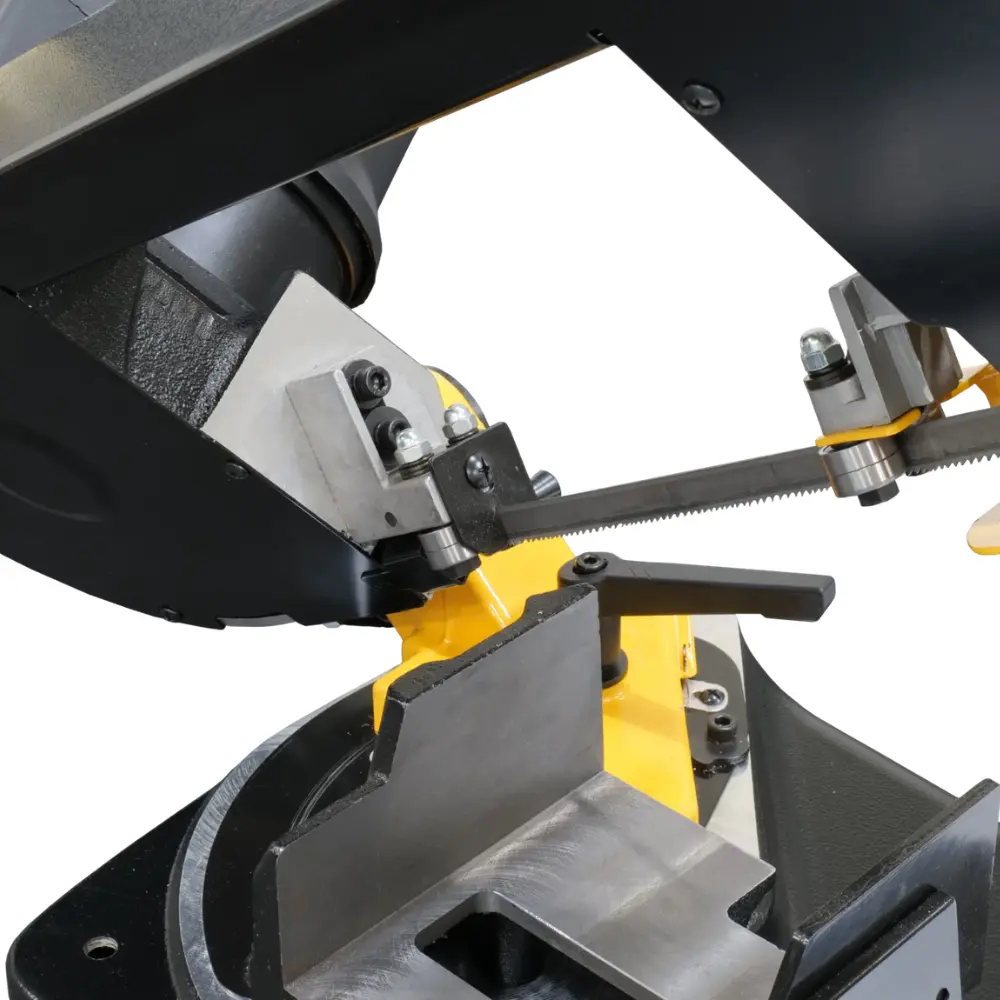

• Blade guide arm adjusts to minimize deflection close to the workpiece

Vise & Workholding

• Integrated vise with swivel jaw for 90° and angled cuts
• Vise jaw auto-adjusts to any stationary jaw position
• Work stop rod assembly included for repeatable length cuts

Blade System

• Blade size: 0.51 × 0.026 × 56.69 inches
• Aluminum bow-saw frame keeps weight low while maintaining blade stability
• Single-knob blade tensioning system with 1/4″ deflection target
• Blade tension should be checked every 8 operating hours

Build & Ergonomics

• Assembled dimensions: 26.4 × 12.2 × 18.9 inches (670 × 310 × 480 mm)
• Four rubber feet with mounting holes for secure bench attachment
• Two mounting methods: lag screw to table surface or hex bolt through table
• Adjustable handle with set screw for ergonomic positioning
• Bottom stop screw prevents over-travel during cutting
• Noise level approximately 60 dB(A)
