Description
Save time and remove the guess work when installing new doors into existing frames with the Milescraft HingeJig™. This self-clamping jig comes with everything needed to rout hinge and latch mortises onto new doors. The self-clamping feature holds the HingeJig™ in place while routing without the use of screws or nails that can leave holes in a finished door.
Self-Clamping
- Padded clamp design sets up quickly and prevents damage to doors caused by mounting screws or nails
Fits All Doors

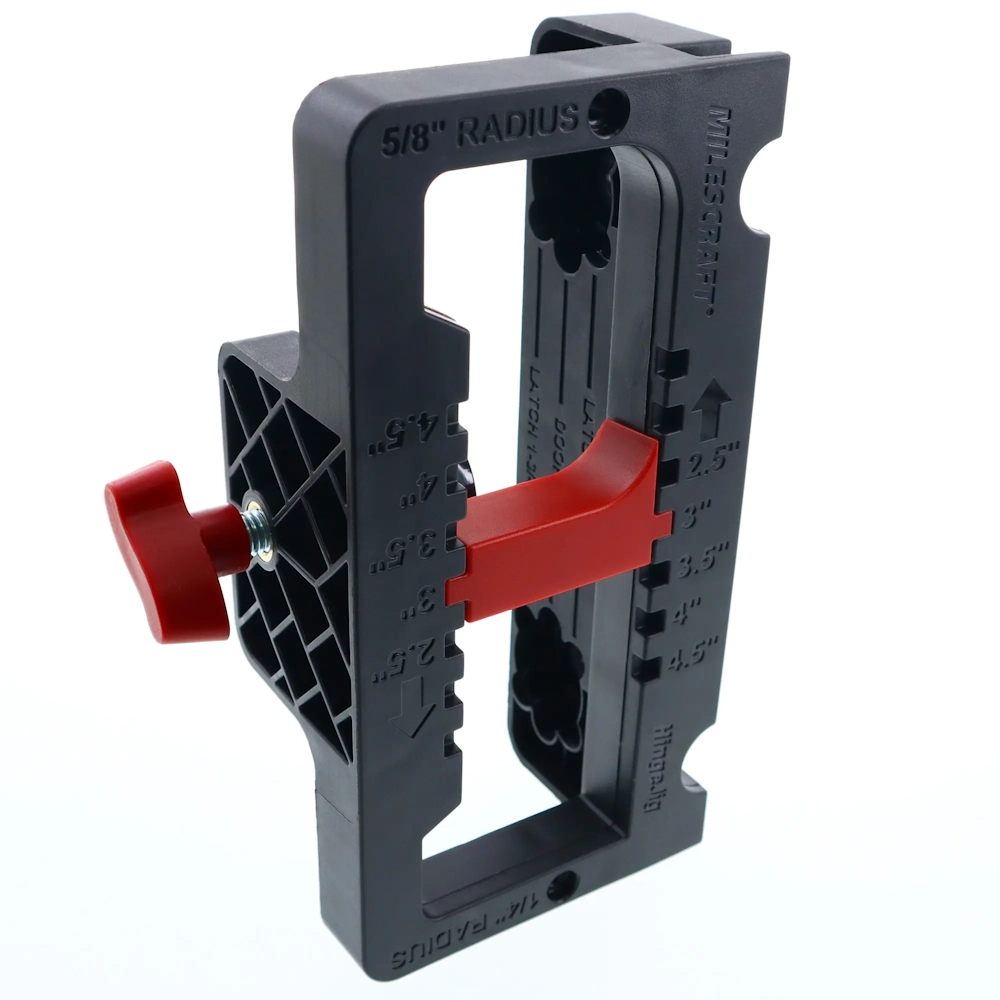

- Adjustable settings allow door hinge jig to be used on all standard size 1-3/8” and 1-3/4” thick doors
Works with Multiple Hinge Sizes
- Routs hinge mortises for 2-1/2” to 4-1/2” hinges
Rout Different Radiuses
- Cut professional hinge mortises with ¼”, 5/8”, or square corners. (Chisel Required)
Unique Design
- Design of the HingeJig™ eliminates need for multiple inserts to rout different hinge corner radiuses
Create Latch Plate Mortises

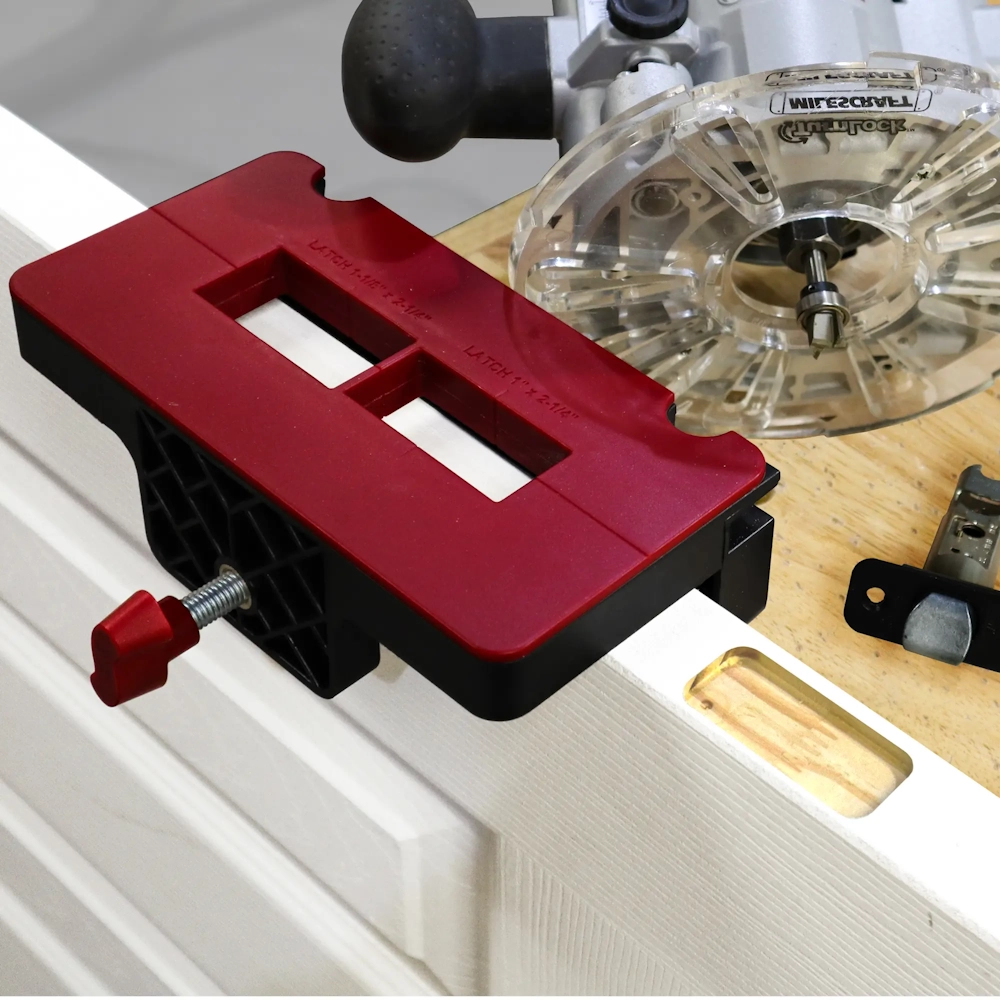

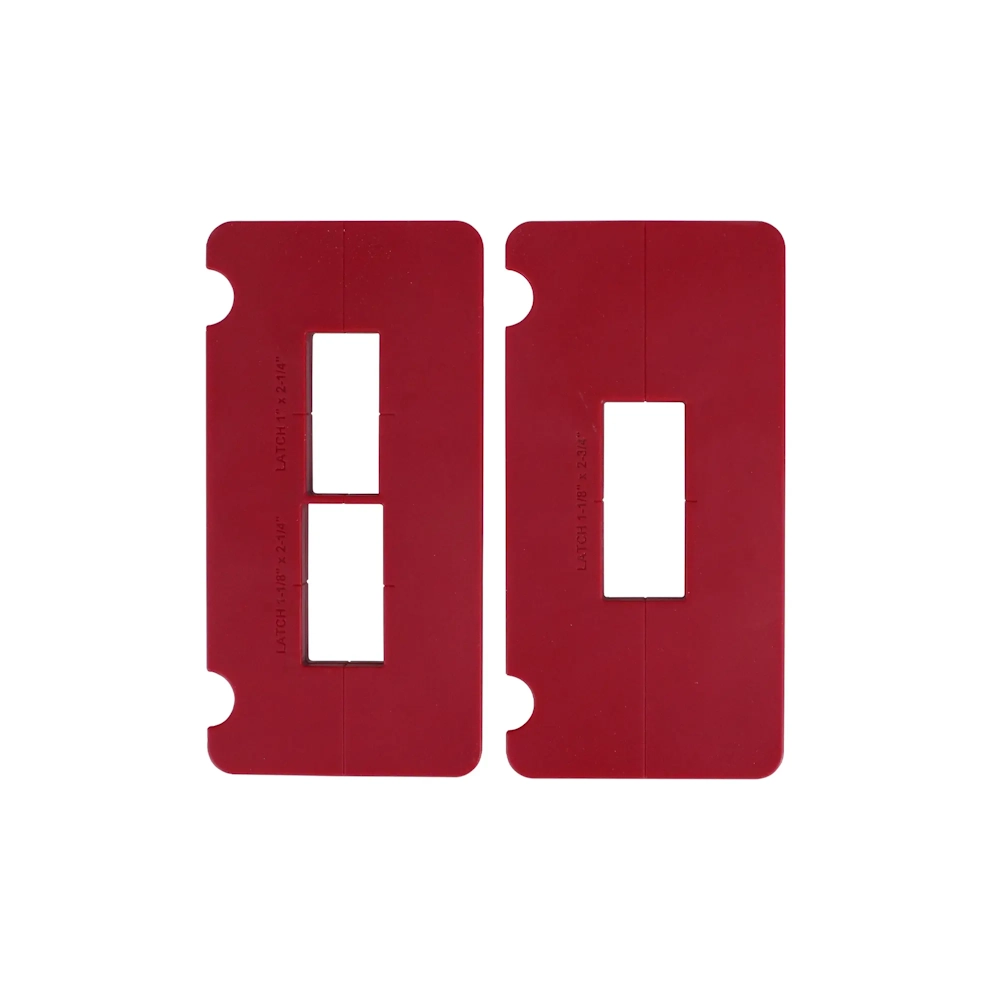

- Kit includes templates to rout common door latch mortises sized 1” x 2-1/4” , 1-1/8” x 2-1/4” , and 1-1/8” x 2-3/4”
Built in Depth Setting
- Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges
Self-Guided Router Bit
- Includes custom router bit with ball bearing to cut clean and smooth door hinge mortises

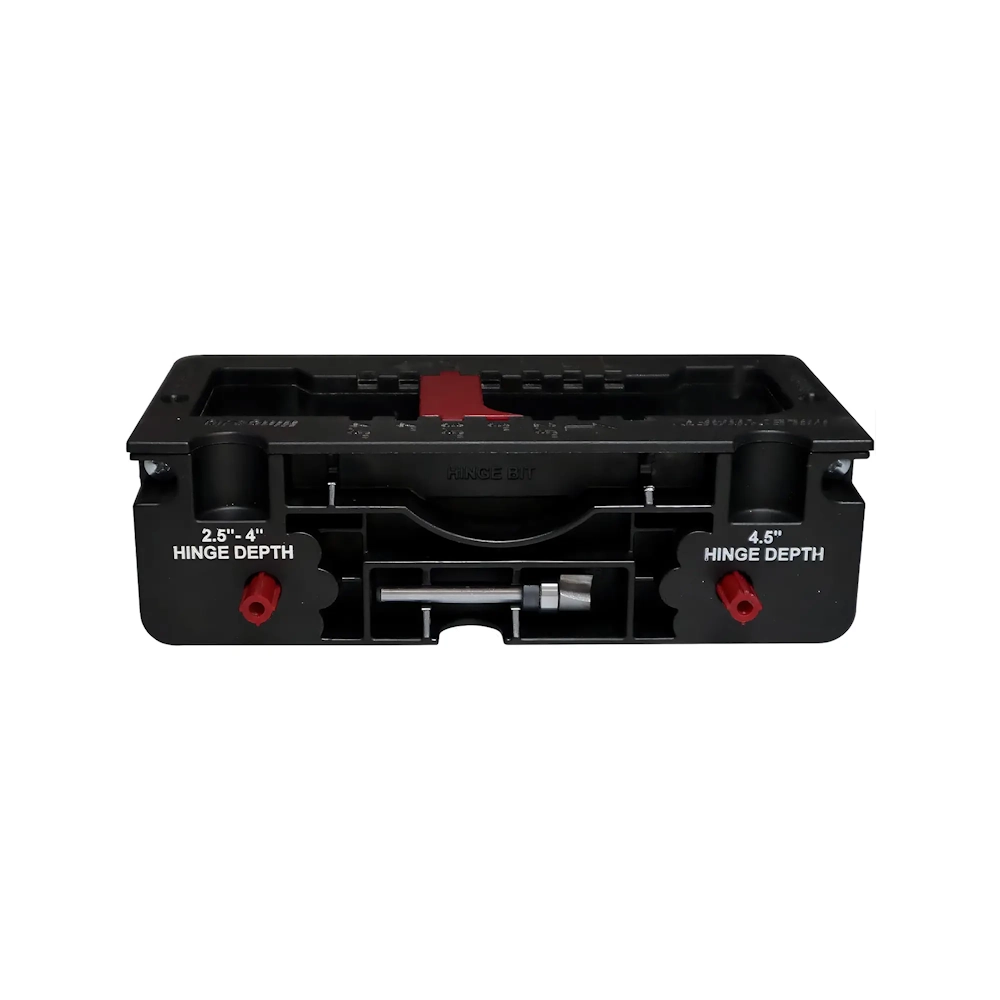

Built-in Storage
- Contains built in storage compartments for router bit and available self-centering hinge bit (not included) for convenient retrieval
For Doors Only
- Not for use when routing door hinges on jamb / frame
