Description

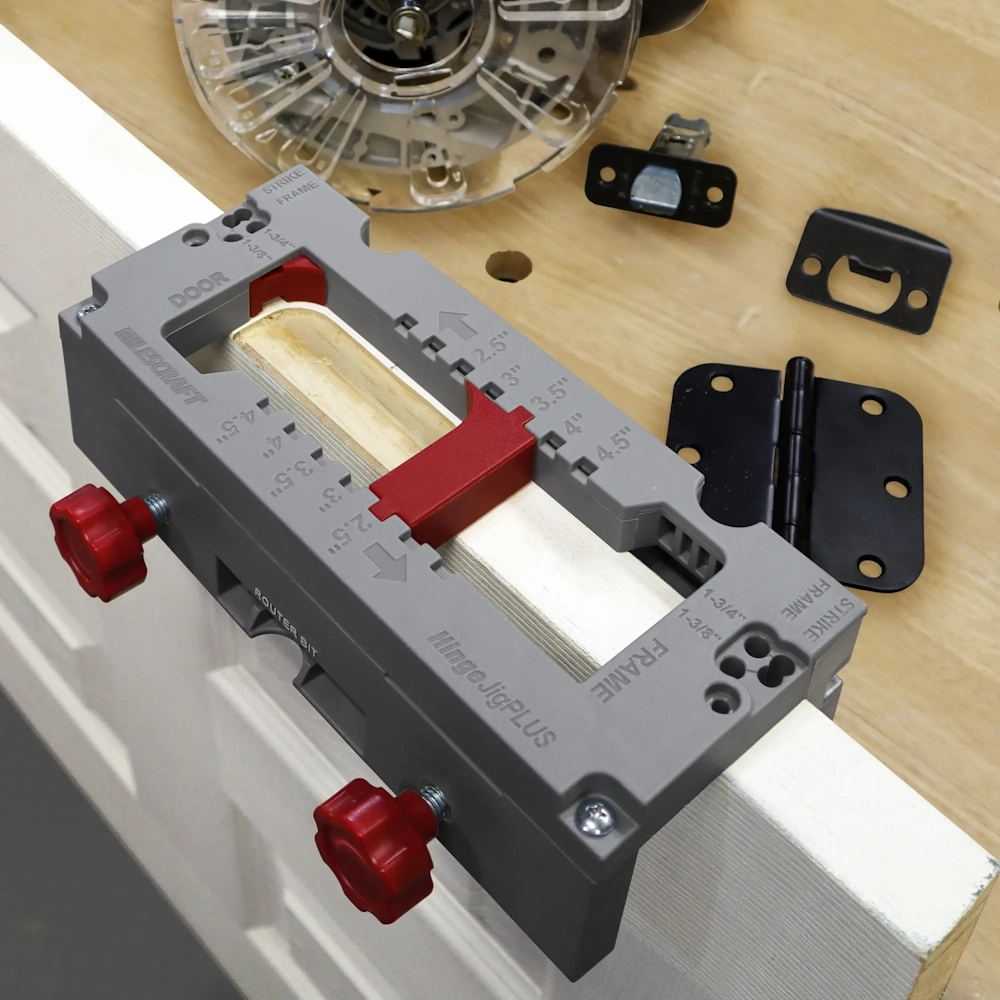

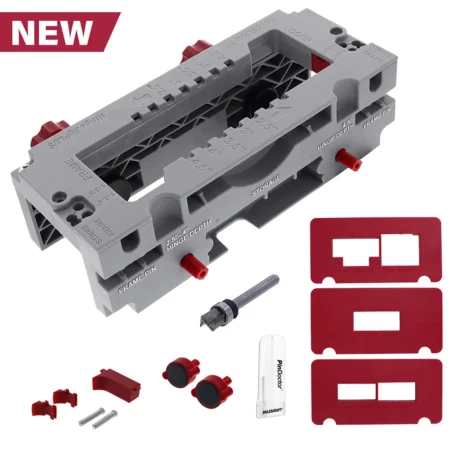

The HingeJigPLUS™, by Milescraft, is a one-stop solution for door installation work. The jig routs and installs door and jamb / frame hinges, latches, and strike plate mortises quickly and accurately. The included bonus PinDoctor™ even assists in removing your old door. The dual-clamping design of the HingeJigPLUS™ mounts quickly and holds firm to ensure cuts are clean and accurate. No need for screws or nails which can damage your door. Built for North American style hardware.

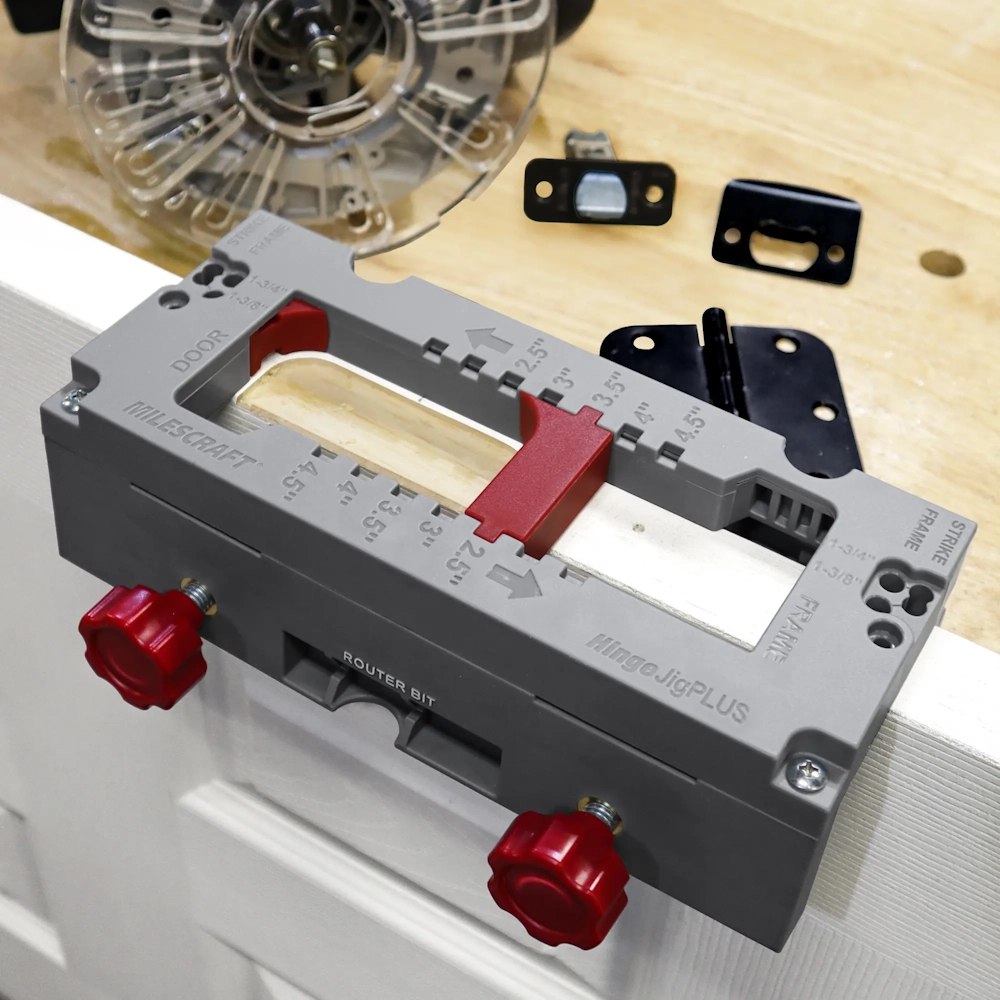

Self-Clamping
- Padded, dual self-clamping design sets up quickly and prevents damage to doors caused by mounting screws or nails
Fits All Doors
- Adjustable settings allow jig to be used on all standard size 1-3/8” and 1-3/4” thick doors
Works with Multiple Hinge Sizes
- Rout door hinge mortises for 2-1/2” to 4-1/2” hinges
Compatible with Frame / Jamb
- Reconfigure HingeJigPLUS™ to rout hinges and strike plates on frame / jamb
Rout Different Radiuses
- Cut professional hinge mortises with ¼”, 5/8”, or square corners. (Chisel Required)

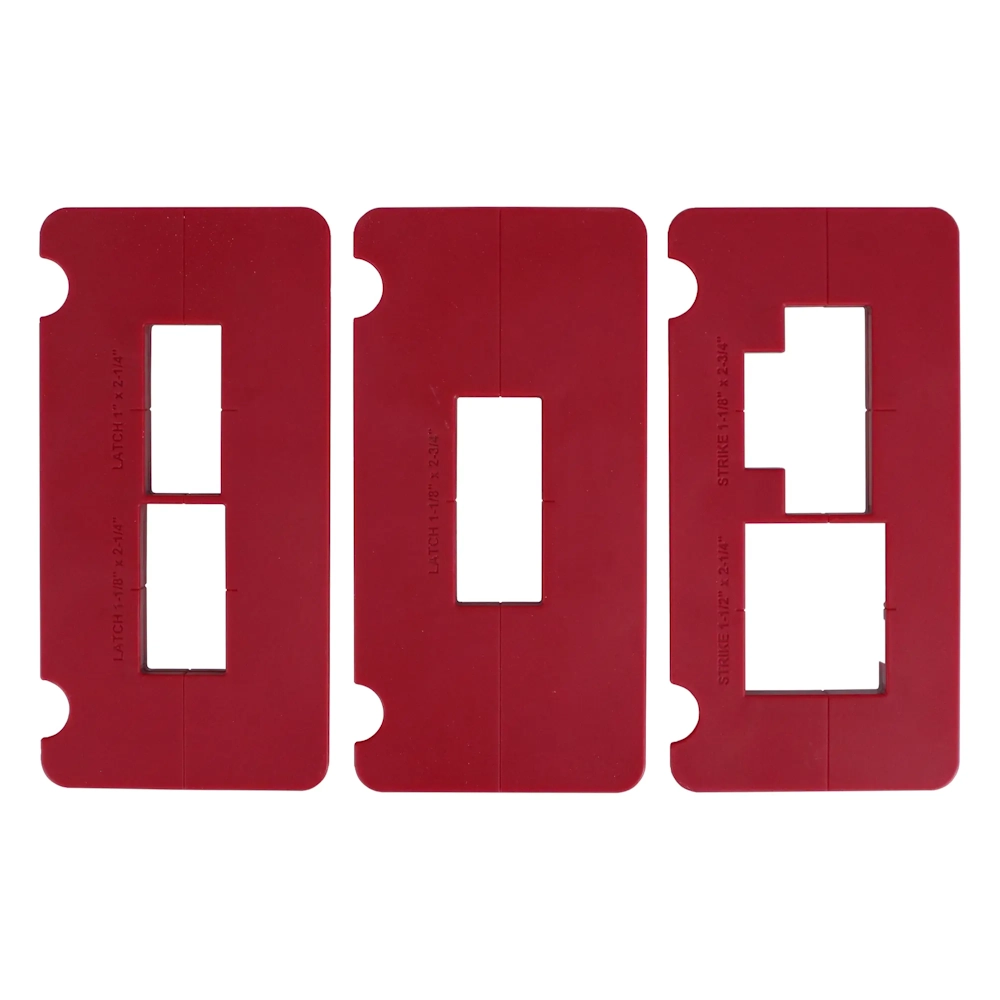

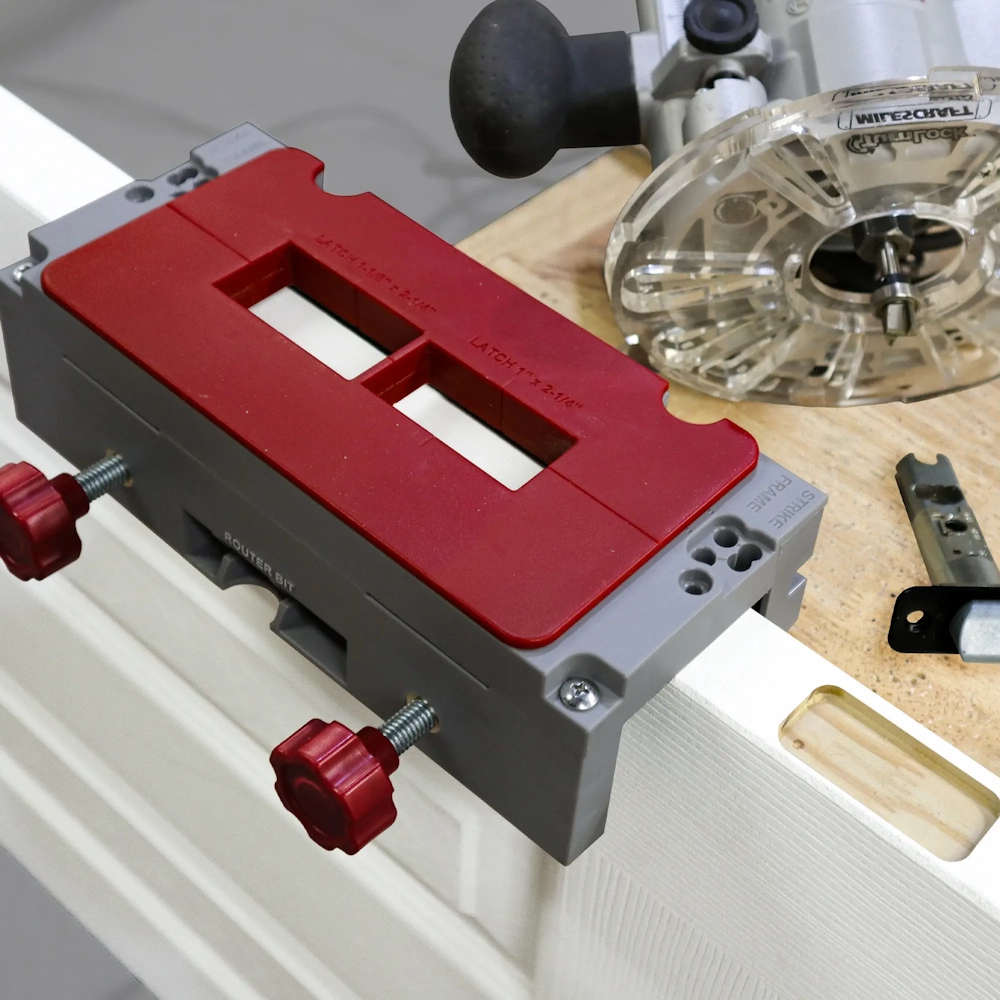

Drop in Latch Templates
- Includes additional templates to rout common door latch mortises sized 1” x 2-1/4” , 1-1/8” x 2-1/4” , and 1-1/8” x 2-3/4”

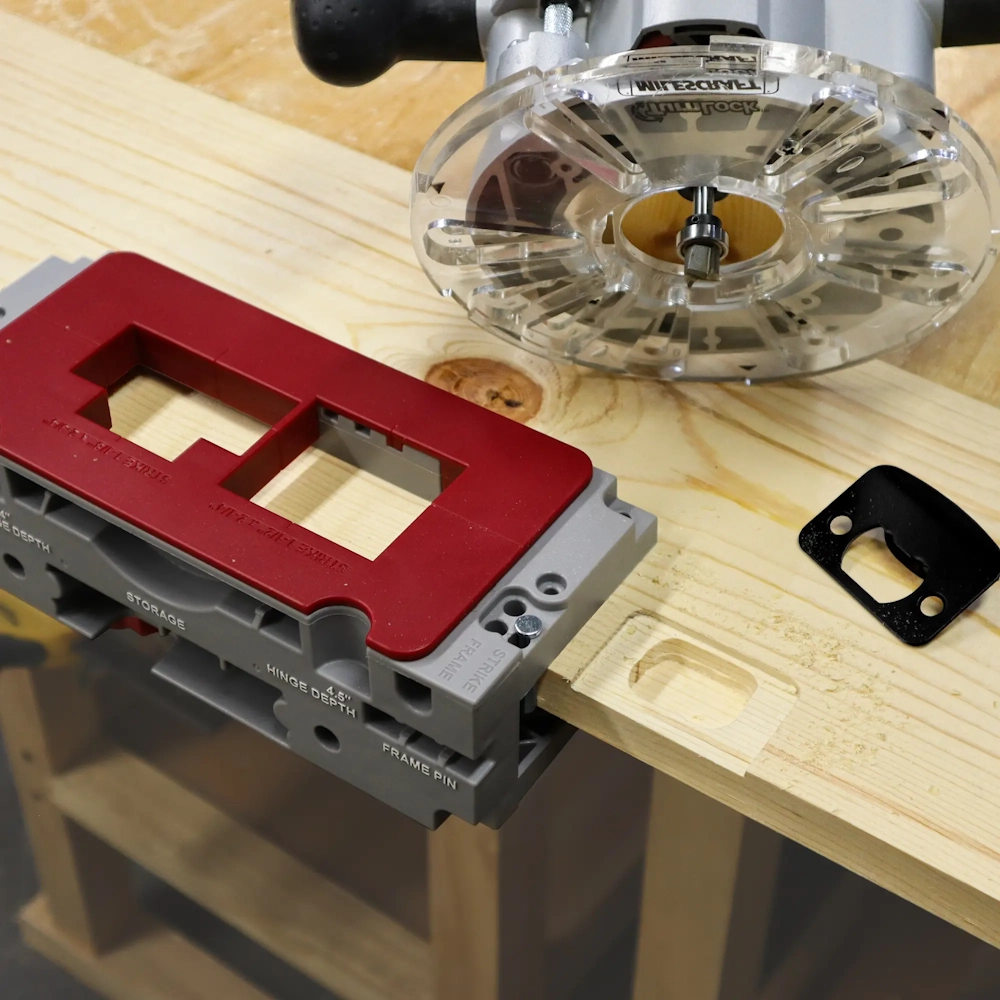

Drop in Strike Plate Templates
- Rout 1-1/2” x 2-1/4” and 1-1/8” x 2-3/4” strike plates

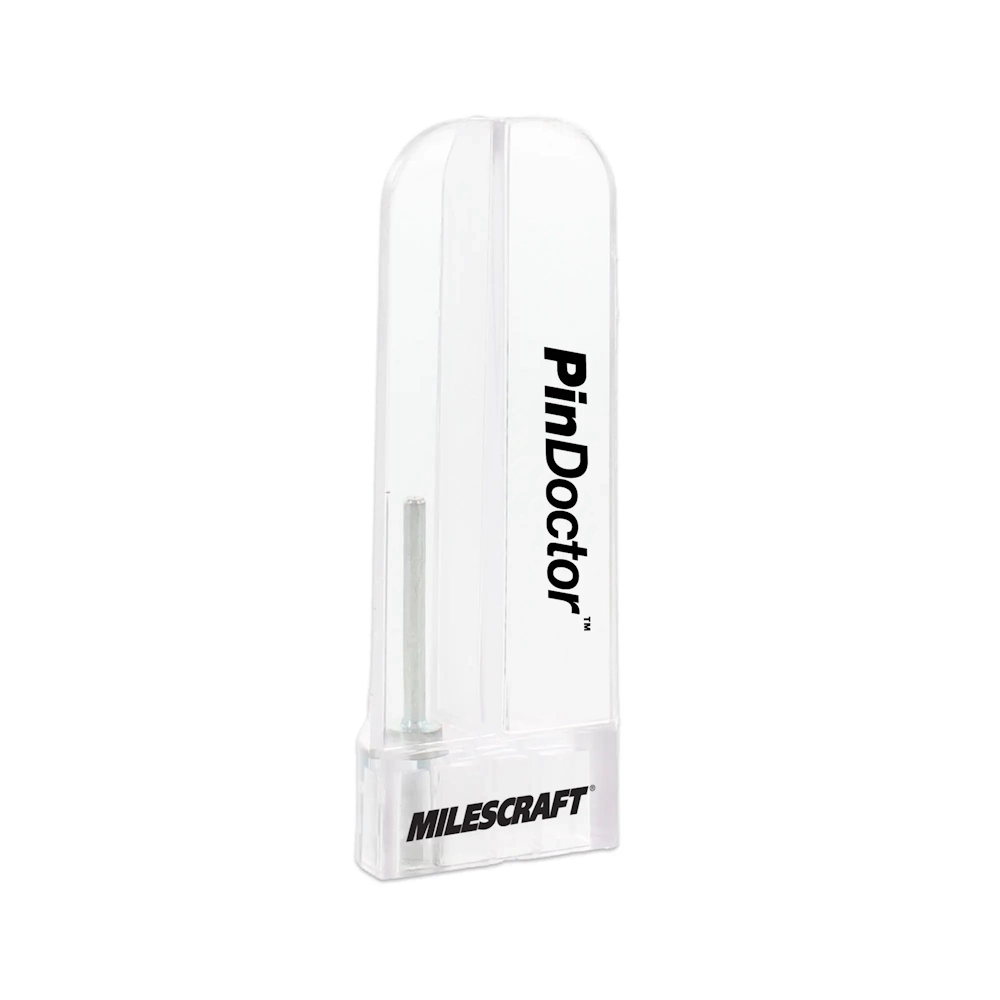

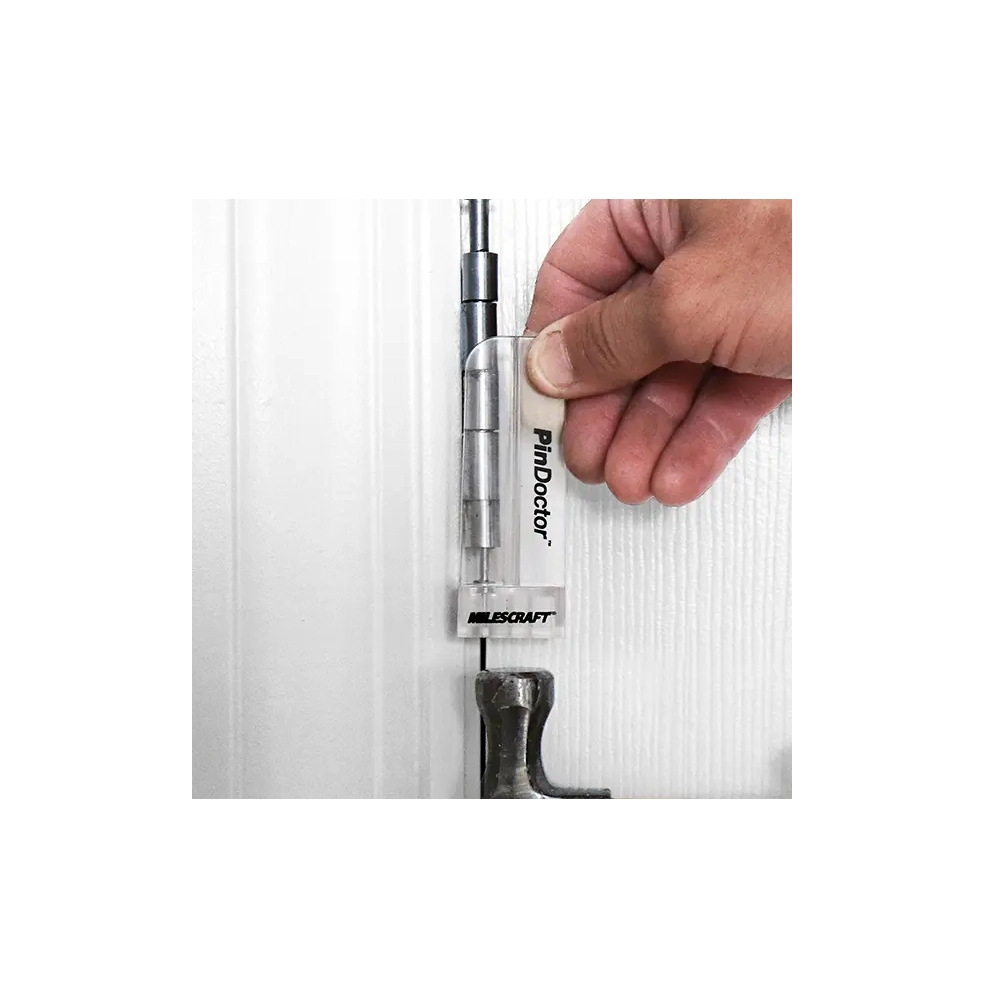

Bonus PinDoctor™
- Included hinge pin removal tool helps remove existing doors
Built in Depth Setting
- Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges

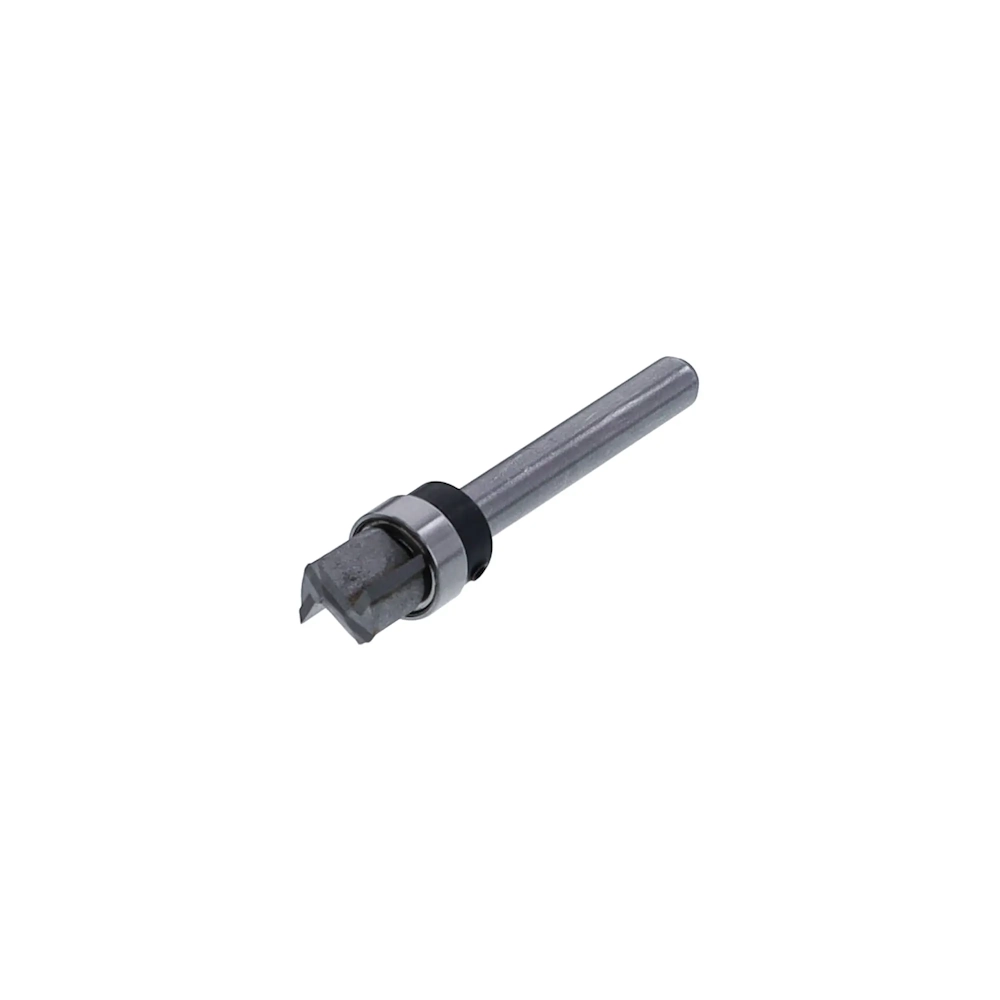

Self-Guided Router Bit
- Includes custom router bit with ball bearing to cut clean and smooth door hinge mortises

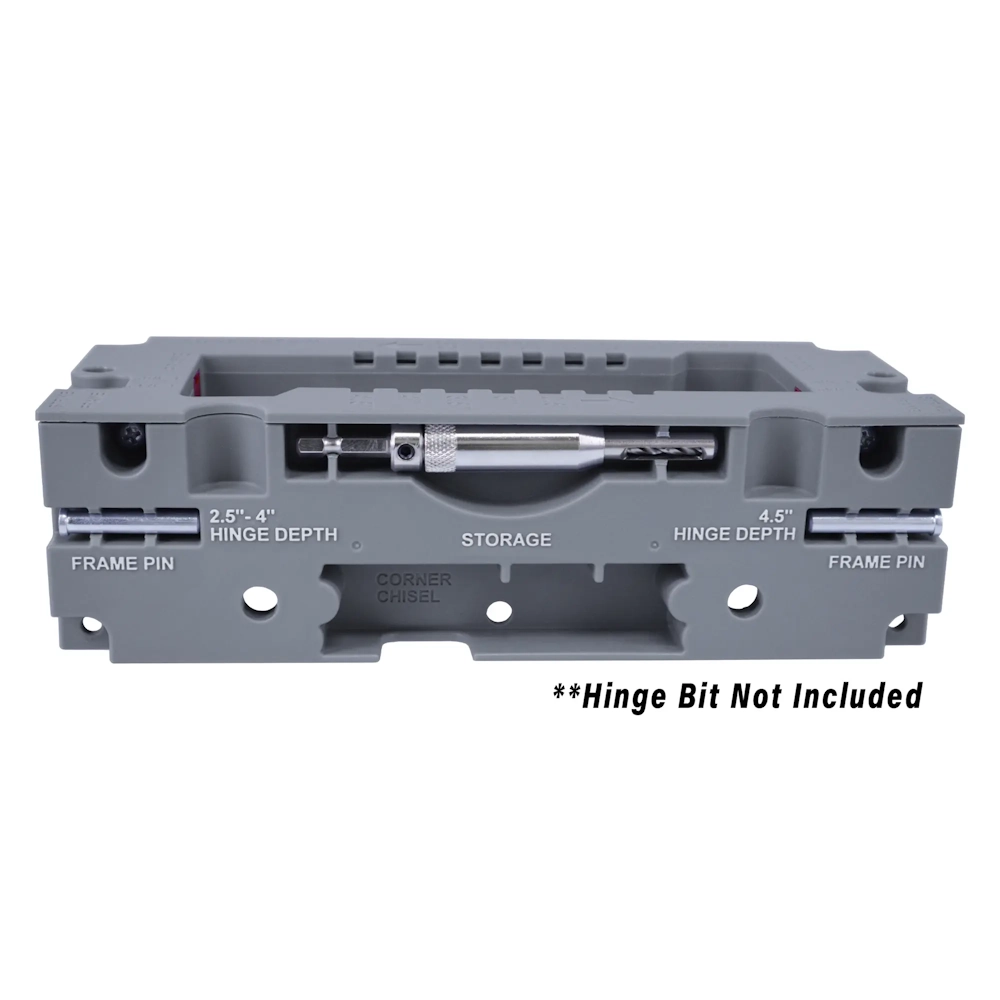

Built-in Storage
- Contains built in storage compartments for router bit and available self-centering hinge bit (not included) for convenient retrieval
