UJK Technology Parf Guide System MK II

SKU: 024104779

R6,299.00 incl.

The only jig that allows you to create a custom workbench top with an accurate pattern of 20mm dog holes!

  • Create cutting benches or boards in less than 30 minutes
  • Perfect for professional trades and home workshops
  • Straightforward to use, produces highly accurate results

Pay over 3 EQUAL zero-interest instalments of R2,099.67 with PayJustNow.
Find out how...

PayJustNow is a simple, easy-to-use payment system.

Here’s how it works:

PayJustNow allows you to pay for your purchase over 3 equal, zero interest instalments. You’ll pay one instalment at the time of purchase, the next at the beginning of the following month and the last one a month thereafter.
#zerointerest

Step 1:

Browse your favourite online stores and proceed to check-out.

Step 2:

Choose PayJustNow as your payment method.

Step 3:

Create your account as easily as if your eyes were shut (though we’d recommend you keep them open).

Step 4:

Complete your purchase and whoop for joy!

Here’s what you’ll need:

  A valid RSA ID document

  To be over 18 years old

  An email address

  A SA Bank issued debit or credit card

In stock

Description

The UJK Parf Mk II Guide System is a versatile jig system enabling you to create a custom-made bench top or portable cutting board in less than 30 minutes and whenever the need arises. It may appear complicated at first sight; in reality, it is quite straightforward with highly accurate results easily achievable.

Based on Pythagoras’ theorem, it helps to produce a bench top with an accurate pattern of 20mm holes. When used with a set of UJK Parf Super Dogs, a guide rail and a track saw, it guarantees perfect , quick and easy 45° and 90° cuts every time. The UJK Parf Mk II Guide System is an invaluable tool for professional trades and home workshops.

Most importantly accuracy is assured and this jig will not allow for cumulative errors due to the way it works.

The design of the Parf Mk II Guide System preserves and guarantees the long-term accuracy of the jig as well as improving the ease of use.

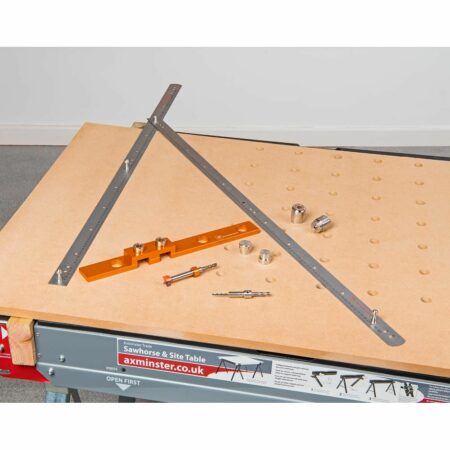

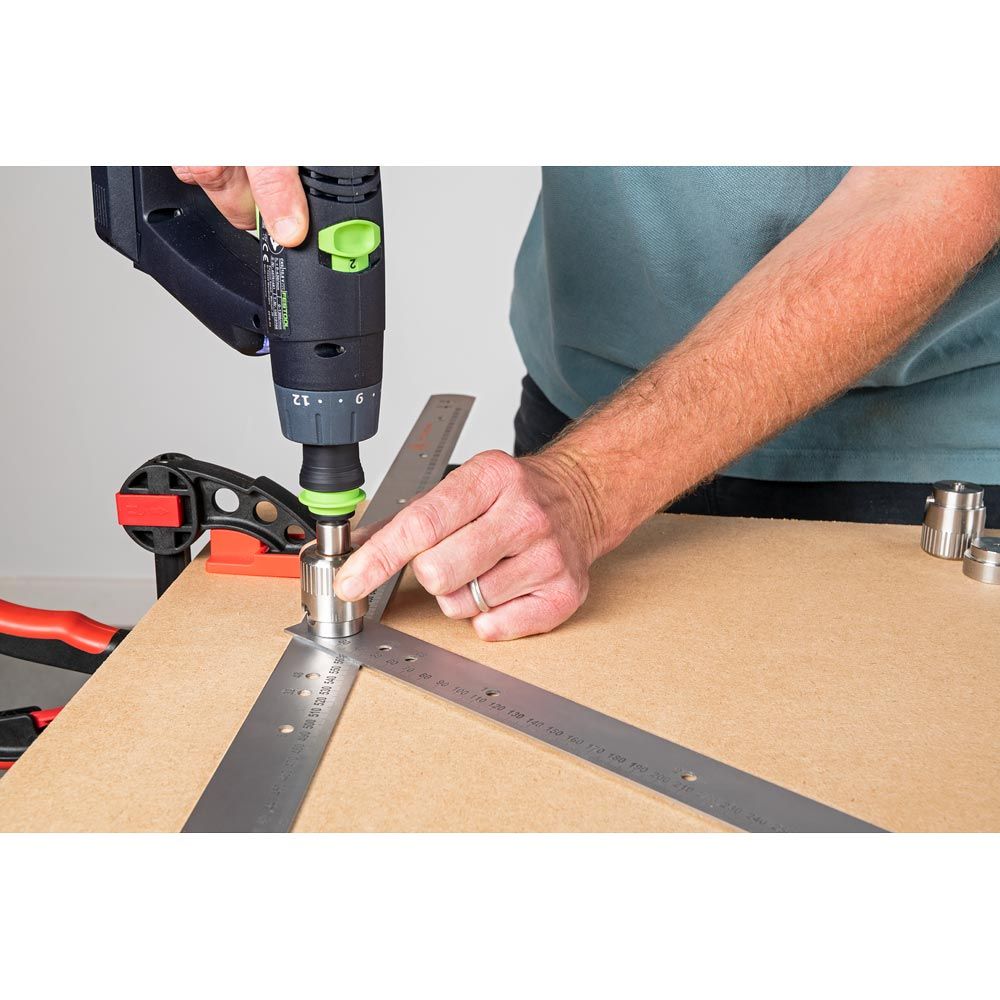

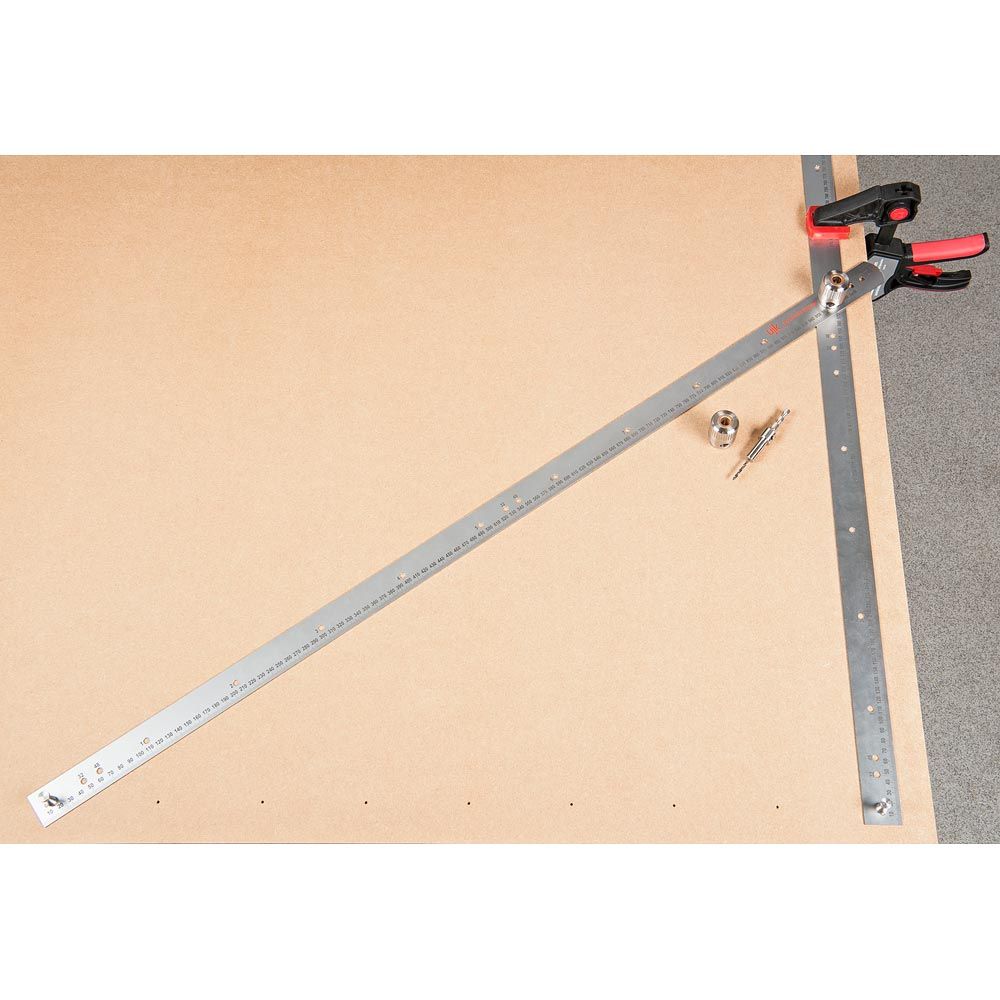

The Parf Mk II Guide System uses 2 x MKII Parf sticks along with a drill guide and a special 3mm drill bit to create rows and columns of holes at perfect right angles.

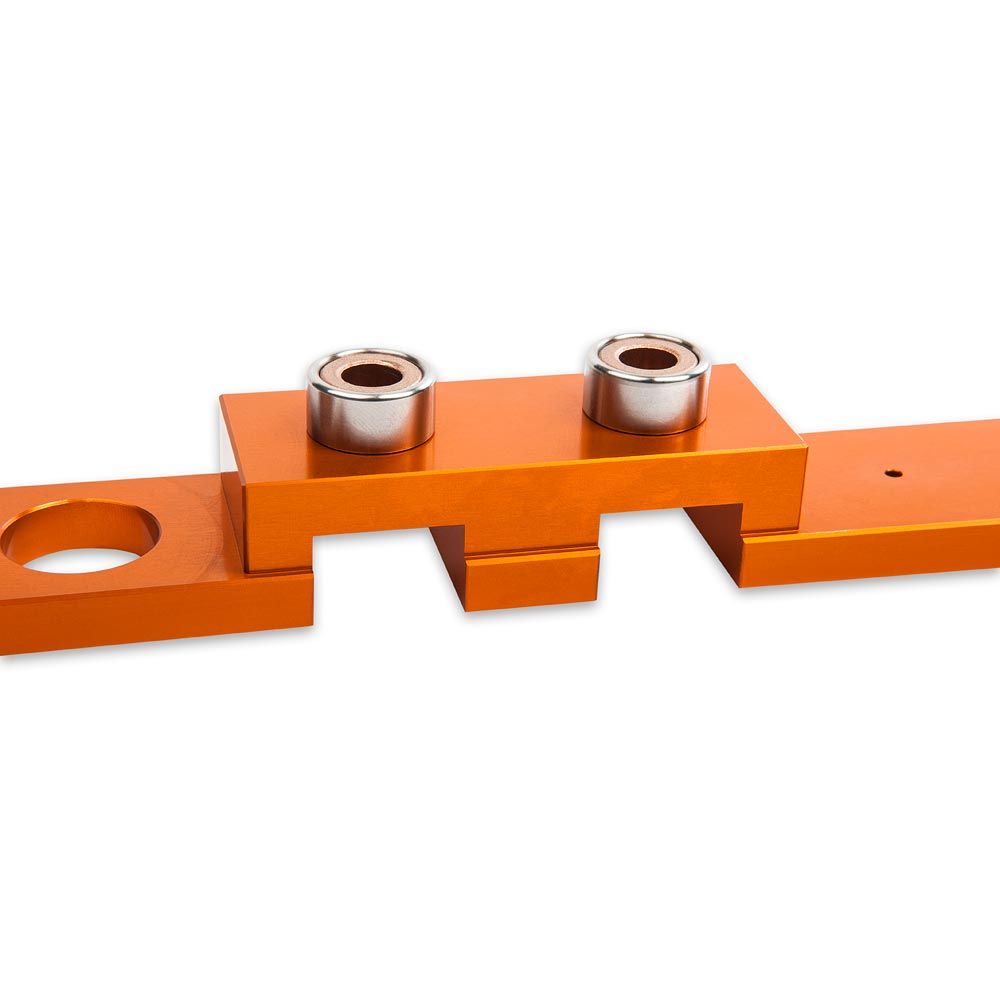

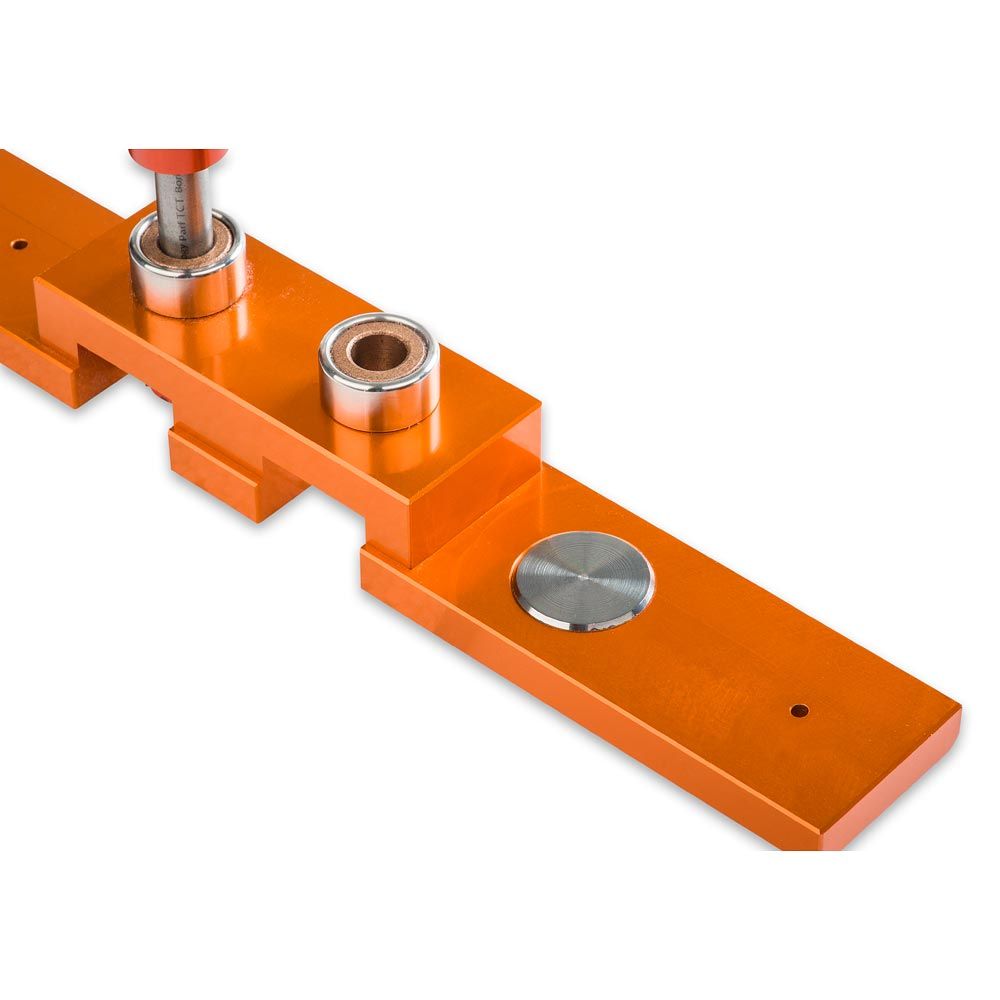

The accuracy of the system is dependent on the very tight tolerance of the holes in the Parf stick. The Mk II drill guides locate positively into holes in the Mk II Parf Stick. The guides feature an oilite bush to guide the Mk II 3mm drill bit. This design prevents any possibility of wear or elongation of these vital holes as a result of repeated use. Additional holes in the Mk II sticks offer the possibility of drilling intermediate holes at 32mm or 48mm centres or holes at predetermined angles other than 90°. The Parf sticks have a metric scale along one edge so that they may have other uses in the workshop.

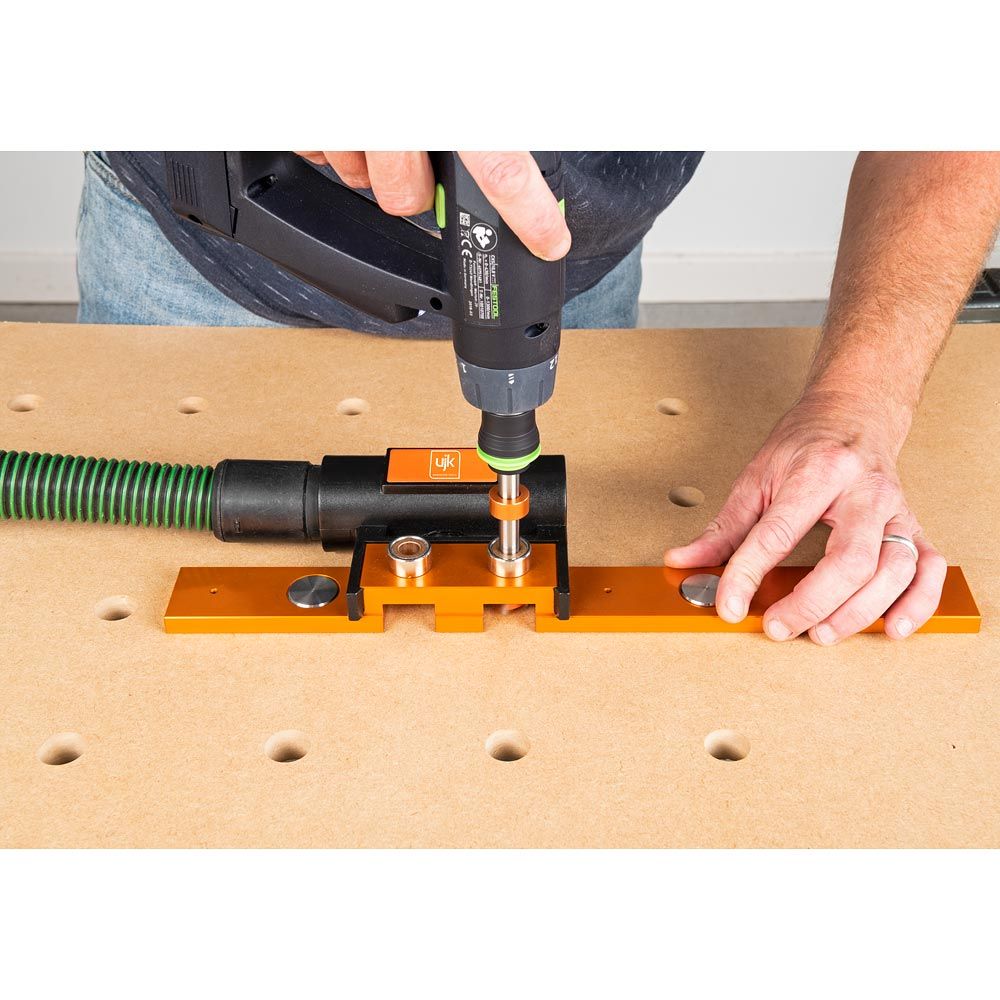

Once the pattern of 3mm holes is complete, use the Parf drilling jig and 20mm boring bit to enlarge the holes and your bench top is finished and ready to take Parf Dogs.

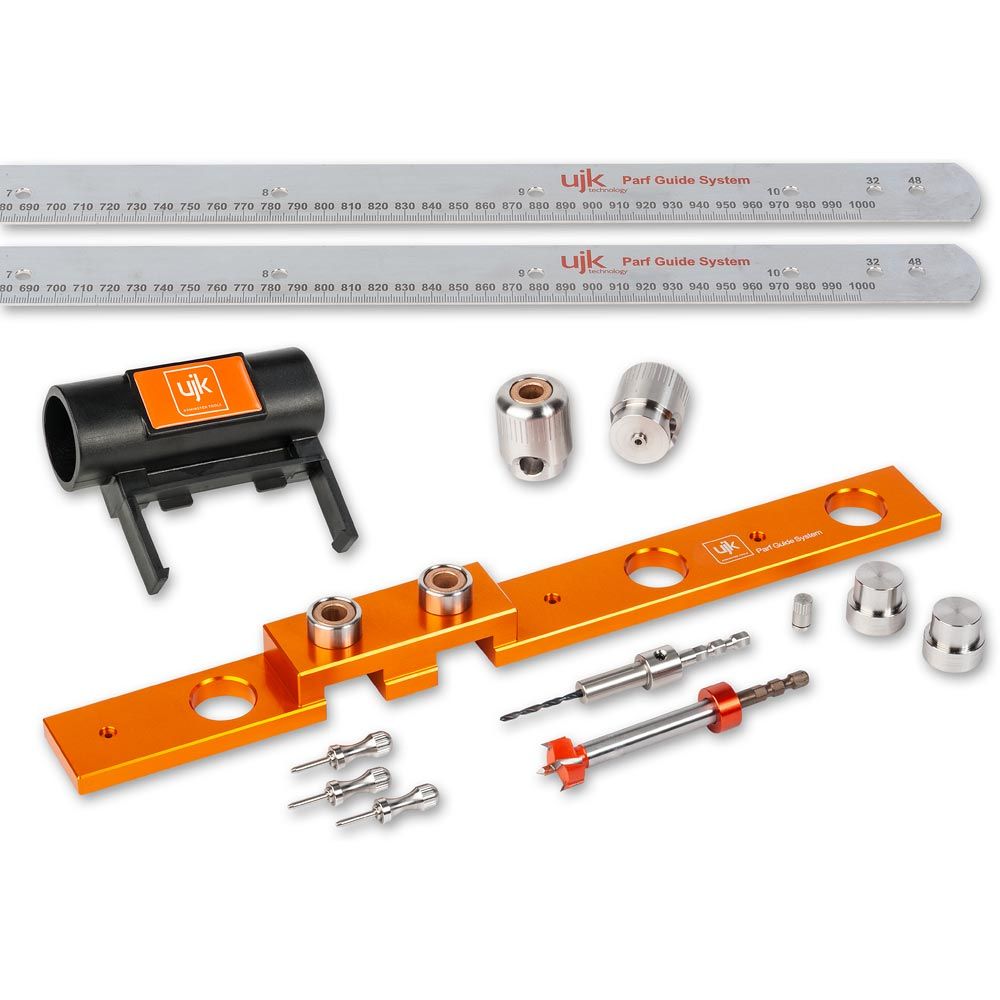

The complete Parf Mk II Guide System comprises 2 x 1m long Mk II Parf sticks, with holes along their length at 96mm centres; 2 x Mk II drill guides, a Mk II 3mm drill bit and 3 x Mk II guide pins. An extractor outlet, guide block, along with a pair of UJK low profile dogs and a special 20mm TC drill bit with a 3mm centre guide are also included. Please note: 3/4″ cutter is not available.

Designed by Peter Parfitt, the UJK Parf Mk II Guide System is a joint development with Axminster Tools & Machinery. Manufacturing of the system takes place entirely in Axminster, Devon under the UJK brand name.

Specifications

Key Features

  • Create cutting benches or boards in less than 30 minutes
  • Perfect for professional trades and home workshops
  • Straightforward to use, produces highly accurate results
  • Based on the Pythagoras’ theorem for infallible accuracy
  • Design guarantees long-term accuracy and ease of use
  • See download section for comprehensive manual and plans
  • All components made, checked or assembled in Axminster for UJK
  • Developed by UJK and Peter Parfitt, a joint development with Axminster Tools
  • Please note: 3/4″ cutter is not available
